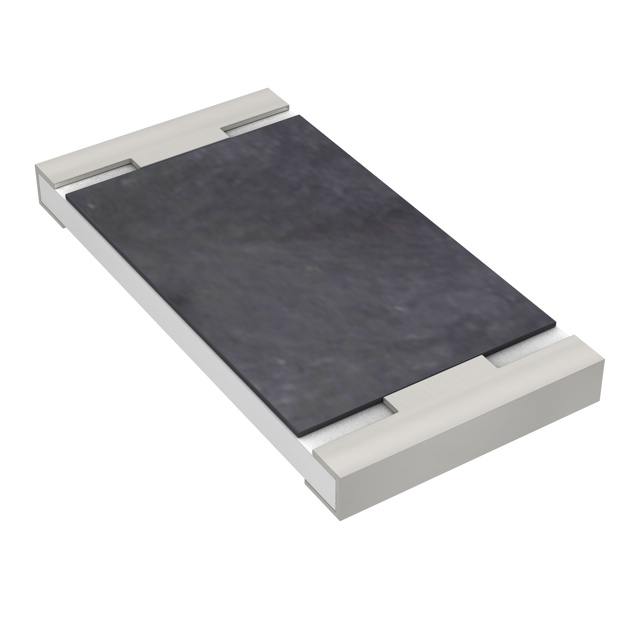

RC2512JK-07510RL
Availability
Design risk
Price trend
Lead time
Standard Jumper Chip Resister
| Size Code | 2512 |
| Technology | METAL GLAZE/THICK FILM |
| Construction | Rectangular |
| Package Style (Meter) | SMT |
| Resistor Type | FIXED RESISTOR |
| Tolerance (%) | 5 |
| J-STD-609 Code | e3 |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH |
| Terminal Shape | WRAPAROUND |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Mounting Feature | SURFACE MOUNT |
| Resistance (ohm) | 510 |
| Additional Feature | LASER TRIMMABLE |
| Package Width (mm) | 3.1 |
| Number of Terminals | 2 |
| Package Height (mm) | 0.55 |
| Package Length (mm) | 6.35 |
| Working Voltage (V) | 200 |
| Rated Temperature (Cel) | 70 |
| Operating Temperature-Max (Cel) | 155 |
| Operating Temperature-Min (Cel) | -55 |
| Rated Power Dissipation (P) (W) | 1 |
| Temperature Coefficient (ppm/Cel) | 100 |
| Width | 3.1 mm |
| Length | 6.35 mm |
| Moisture Sensitivity Level | 1 |
