TPS65217CRSLR

Texas Instruments Incorporated

TPS65217CRSLR

Availability

Design risk

Price trend

Lead time

Semiconductors

Power Management Circuits

Lead time 6 weeks
Data sheet TPS65217CRSLR
2 results found

Availability

Design risk

Price trend

Lead time

Semiconductors

Power Management Circuits

Lead time 6 weeks
Data sheet TPS65217CRSLR

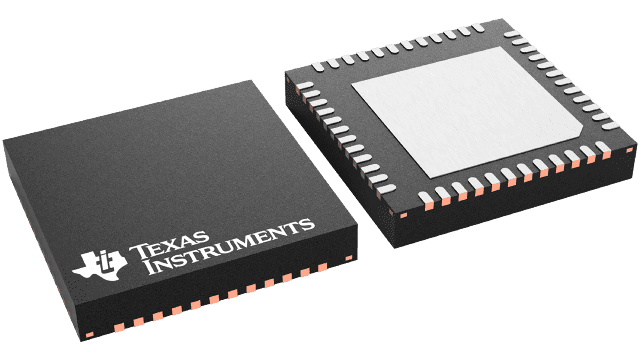

Power Management IC (PMIC) w/ 3 DC/DCs, 4 LDOs, linear battery charger & white LED driver 48-VQFN -40 to 105

Technical Data
Width (mm) 6
Length (mm) 6
JESD-30 Code S-PQCC-N48
Package Code HVQCCN
Package Shape SQUARE
Package Style (Meter) CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Surface Mount YES
Terminal Form NO LEAD
J-STD-609 Code e4
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Number of Outputs 9
Temperature Grade INDUSTRIAL
Terminal Position QUAD
Additional Feature DETECTION THRESHOLD VOLTAGE IS 6 VOLT; ALSO OPERATES IN BATTERY INPUT VOLTAGE FROM 0 TO 5.5 VOLT
Number of Channels 1
Number of Functions 1
Number of Terminals 48
Terminal Pitch (mm) 0.4
Adjustable Threshold YES
Input Voltage-Max (V) 5.8
Input Voltage-Min (V) 2.75
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Output Current-Max (A) 1.2
Output Voltage-Max (V) 3.3
Output Voltage-Min (V) 0.9
Seated Height-Max (mm) 1
Supply Voltage-Max (V) 5.8
Supply Voltage-Min (V) 2.75
Supply Voltage-Nom (V) 3.6
Supply Current-Max (mA) 2000
Package Equivalence Code LCC48,.24SQ,16
Threshold Voltage-Nom (V) +1.5V
Moisture Sensitivity Level 3
Peak Reflow Temperature (Cel) 260
Switching Frequency-Max (kHz) 2550
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -40
Time@Peak Reflow Temperature-Max (s) 30
