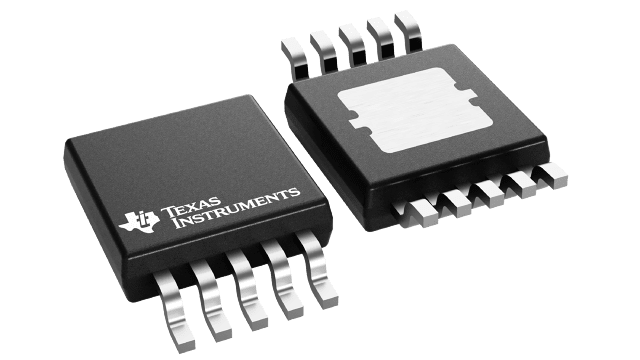

TPS40210DGQR
Availability
Design risk
Price trend
Lead time
4.5~52V Wide Input Range Boost/SEPIC/Flyback DC-DC Controller 10-HVSSOP -40 to 125
| Width (mm) | 3 |
| Length (mm) | 3 |
| Control Mode | CURRENT-MODE |
| JESD-30 Code | S-PDSO-G10 |
| Package Code | HTSSOP |
| Package Shape | SQUARE |
| Package Style (Meter) | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) |
| Control Technique | PULSE WIDTH MODULATION |
| DLA Qualification | Not Qualified |
| Number of Outputs | 1 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 10 |
| Terminal Pitch (mm) | 0.5 |
| Input Voltage-Max (V) | 52 |
| Input Voltage-Min (V) | 4.5 |
| Input Voltage-Nom (V) | 12 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Output Current-Max (A) | 6 |
| Output Voltage-Max (V) | 300 |
| Output Voltage-Min (V) | 4.5 |
| Output Voltage-Nom (V) | 8 |
| Seated Height-Max (mm) | 1.1 |
| Switcher Configuration | BUCK-BOOST |
| Package Equivalence Code | TSSOP10,.19,20 |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Switching Frequency-Max (kHz) | 1000 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
