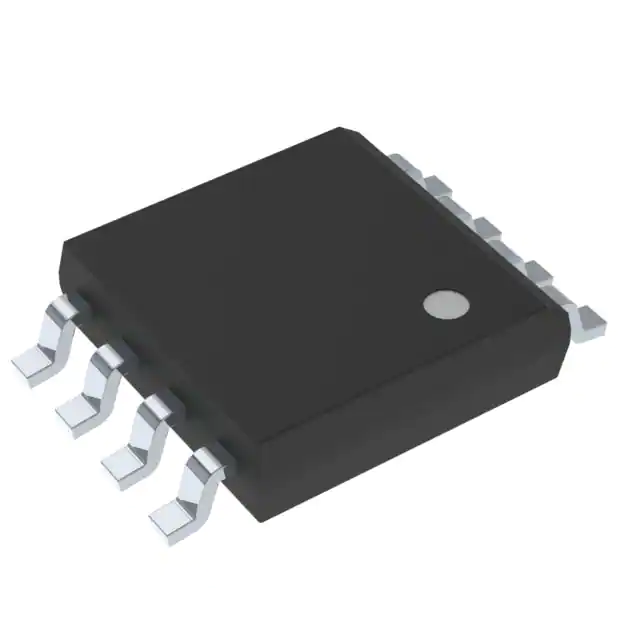

AT45DB641E-SHN2B-T
Availability
Design risk
Price trend
Lead time
64Mbit, 1.7 V to 3.6 V Range SPI Serial Flash Memory
| Type | NOR TYPE |
| Technology | CMOS |
| Width (mm) | 5.2400 |
| Length (mm) | 5.2900 |
| JESD-30 Code | R-PDSO-G8 |
| Memory Width | 1 |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Memory IC Type | FLASH |
| Operating Mode | SYNCHRONOUS |
| Parallel/Serial | SERIAL |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Memory Organization | 64MX1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Terminal Pitch (mm) | 1.270 |
| Number of Words Code | 64M |
| Memory Density (bits) | 67108864.0000000000000000 |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 2.1600 |
| Supply Voltage-Max (V) | 3.60000 |
| Supply Voltage-Min (V) | 1.70000 |
| Supply Voltage-Nom (V) | 2.3 |
| Number of Words (words) | 67108864.0000000000000000 |
| Programming Voltage (V) | 1.8 |
| Clock Frequency-Max (MHz) | 85.00000 |
| Moisture Sensitivity Level | 1 |
| Operating Temperature-Max (Cel) | 85.0 |
| Operating Temperature-Min (Cel) | -40.0 |
