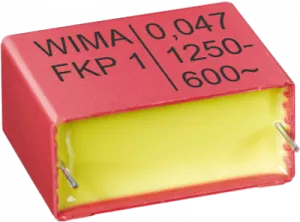

Film capacitor, FKP1Y011005A00KSSD, WIMA The FKP1Y011005A00KSSD is a pulse capacitor that was developed for extremly high pulse loads. This product has an internal series connection, the metal foil electrodes being combined with a floating electrode metallized on both sides. The metal foil electrodes are safely contacted on both sides of the end surfaces. Features Self-healing Internal series connection Extremely high pulse duty Very low dissipation factor Negative capacitance change versus temperature Applications Switch mode power supplies Converter in drives and power electronics Deflection systems in monitors and TV-sets Electronic ballasts
| Width (mm) | 5 |
| Height (mm) | 14 |
| Length (mm) | 26.5 |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style (Meter) | Radial |
| Capacitor Type | FILM CAPACITOR |
| J-STD-609 Code | e3 |
| Packing Method | BULK |
| Terminal Shape | WIRE |
| Terminal Finish | TIN |
| Capacitance (uF) | 0.001 |
| Mounting Feature | THROUGH HOLE MOUNT |
| Dielectric Material | POLYPROPYLENE |
| Number of Terminals | 2 |
| Terminal Pitch (mm) | 22.5 |
| Negative Tolerance (%) | 10 |
| Positive Tolerance (%) | 10 |
| Rated AC Voltage (URac) (V) | 700 |
| Rated DC Voltage (URdc) (V) | 6000 |
| Operating Temperature-Max (Cel) | 105 |
| Operating Temperature-Min (Cel) | -55 |
| Screening Level / Reference Standard | AEC-Q200 |
