CY9BF524KPMC-G-MNE2
Availability
Design risk
Price trend
Lead time

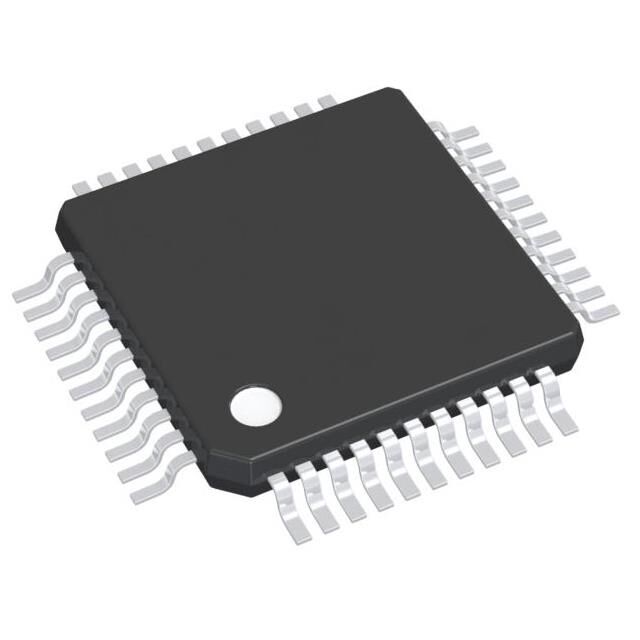

MCU 32-bit ARM Cortex M3 RISC 288KB Flash 3.3V/5V 48-Pin LQFP Tray
| Format | FIXED POINT |
| Bit Size | 32 |
| CPU Family | CORTEX-M3 |
| Technology | CMOS |
| Width (mm) | 7 |
| Length (mm) | 7 |
| Peripherals | DMA(8), POR, RTC, TIMER(16), WDT(2) |
| Speed (MHz) | 72 |
| ADC Channels | YES |
| Connectivity | CAN, CSIO(4), I2C(4), LIN(4), UART(4), USB |
| DAC Channels | YES |
| DMA Channels | YES |
| JESD-30 Code | S-PQFP-G48 |
| PWM Channels | YES |
| Package Code | LFQFP |
| Boundary Scan | YES |
| Package Shape | SQUARE |
| Package Style (Meter) | FLATPACK, LOW PROFILE, FINE PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| A/D Converters | 14-Ch 12-Bit |
| D/A Converters | 2-Ch 10-Bit |
| Low Power Mode | YES |
| Integrated Cache | NO |
| Number of Timers | 16 |
| Terminal Position | QUAD |
| Number of I/O Lines | 35 |
| Number of Terminals | 48 |
| Program Memory Type | FLASH |
| Terminal Pitch (mm) | 0.5 |
| Data RAM Size (bytes) | 32768 |
| Number of Serial I/Os | 1 |
| Package Body Material | PLASTIC/EPOXY |
| Number of DMA Channels | 8 |
| On Chip Data RAM Width | 8 |
| Seated Height-Max (mm) | 1.7 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 2.7 |
| Supply Voltage-Nom (V) | 4.5 |
| Supply Current-Max (mA) | 41 |
| Package Equivalence Code | QFP48,.35SQ,20 |
| Clock Frequency-Max (MHz) | 48 |
| Moisture Sensitivity Level | 3 |
| Program Memory Size (words) | 262144 |
| Program Memory Width (bits) | 8 |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Number of External Interrupts | 15 |
| Operating Temperature-Max (Cel) | 105 |
| Operating Temperature-Min (Cel) | -40 |
