CS4334-KSZR
Availability
Design risk
Price trend
Lead time

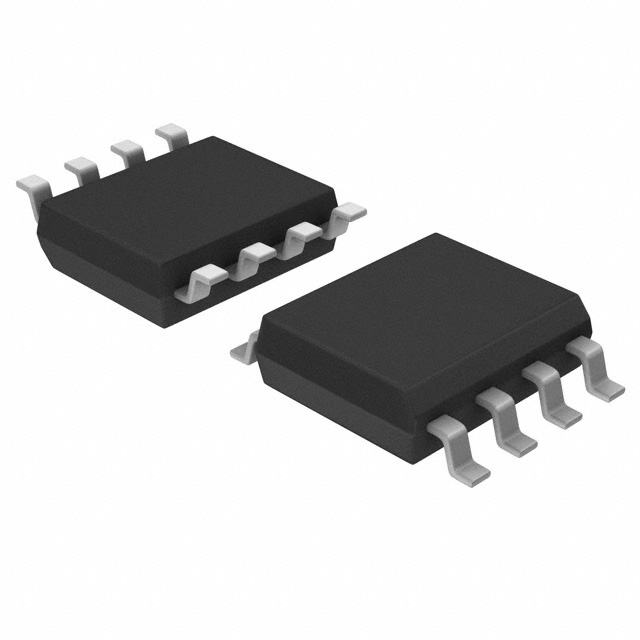

IC DAC 24BIT V-OUT 8SOIC
| Width (mm) | 3.9 |
| Length (mm) | 4.9 |
| Technology | BIPOLAR |
| Input Format | SERIAL |
| JESD-30 Code | R-PDSO-G8 |
| Package Code | SOP |
| JESD-609 Code | e3 |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Converter Type | D/A CONVERTER |
| Input Bit Code | 2'S COMPLEMENT BINARY |
| Number of Bits | 24 |
| Terminal Pitch (mm) | 1.27 |
| Terminal Finish | MATTE TIN |
| Seated Height-Max (mm) | 1.75 |
| Temperature Grade | COMMERCIAL |
| Terminal Position | DUAL |
| Supply Current-Max (mA) | 19 |
| Supply Voltage-Nom (V) | 5 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Qualification Status | Not Qualified |
| Package Body Material | PLASTIC/EPOXY |
| Package Equivalence Code | SOP8,.25 |
| Analog Output Voltage-Max (V) | 3.75 |
| Analog Output Voltage-Min (V) | -3.75 |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | -10 |
| Moisture Sensitivity Level | 2 |
| Peak Reflow Temperature (Cel) | 260 |
