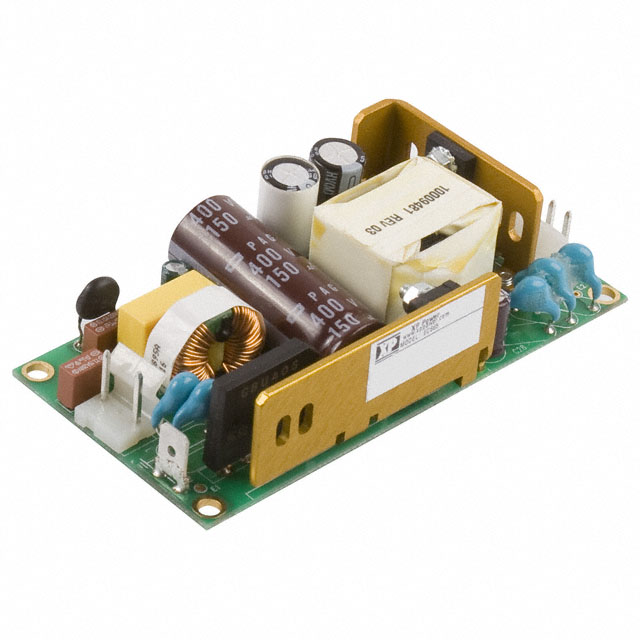

ECS65US24
Availability
Design risk
Price trend
Lead time
Switching Power Supplies PSU, 65W, INDUSTRIAL AND MEDICAL
| Approvals | CB, CSA, EN, IEC, TUV, UL |
| Technology | HYBRID |
| Protections | OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE |
| Control Mode | VOLTAGE-MODE |
| JESD-30 Code | R-XXMA-X |
| Package Code | XMA |
| Package Shape | RECTANGULAR |
| Package Style | MICROELECTRONIC ASSEMBLY |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Number of Outputs | 1 |
| Temperature Grade | COMMERCIAL |
| Terminal Position | UNSPECIFIED |
| Number of Functions | 1 |
| Input Voltage-Max (V) | 264.0000000000000000 |
| Input Voltage-Min (V) | 80.0000000000000000 |
| Input Voltage-Nom (V) | 115 |
| Package Body Material | UNSPECIFIED |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE |
| Output Current-Max (A) | 2.7000000000000000 |
| Output Voltage-Max (V) | 26.4000000000000000 |
| Output Voltage-Min (V) | 21.6000000000000000 |
| Output Voltage-Nom (V) | 24.0000000000000000 |
| Trim/Adjustable Output | YES |
| Warm-Up Time (Seconds) | 0.050000000000000 |
| Line Regulation-Max (%) | 0.500000 |
| Load Regulation-Max (%) | 1.000000 |
| Total Power Output-Max (W) | 65.0000000000000000 |
| Efficiency (Main Output) (%) | 90.000000 |
| Switching Frequency-Max (kHz) | 65.0000000000000000 |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | -20 |
| Ripple Voltage (Main Out) (Vrms) | 0.003535000000000 |
