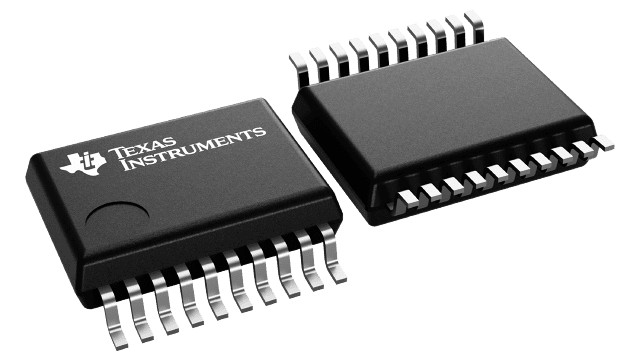

SN74LVT245BPWR
Availability
Design risk
Price trend
Lead time
3.3-V ABT Octal Bus Transceivers With 3-State Outputs 20-TSSOP -40 to 85
| Family | LVT |
| Direction | BIDIRECTIONAL |
| Technology | BICMOS |
| Width (mm) | 4.4 |
| Length (mm) | 6.5 |
| Control Type | COMMON CONTROL |
| JESD-30 Code | R-PDSO-G20 |
| Package Code | TSSOP |
| Logic IC Type | BUS TRANSCEIVER |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Number of Bits | 8 |
| Packing Method | TR |
| Number of Ports | 2 |
| Output Polarity | TRUE |
| Schmitt Trigger | NO |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Additional Feature | WITH DIRECTION CONTROL |
| Number of Functions | 8 |
| Number of Terminals | 20 |
| Terminal Pitch (mm) | 0.65 |
| Load Capacitance (pF) | 50 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | 3-STATE |
| Propagation Delay (ns) | 4 |
| Seated Height-Max (mm) | 1.2 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 2.7 |
| Supply Voltage-Nom (V) | 3.3 |
| Supply Current-Max (mA) | 5 |
| Package Equivalence Code | TSSOP20,.25 |
| Moisture Sensitivity Level | 1 |
| Output Low Current-Max (mA) | 64 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Propagation Delay-Max@Nom-Sup (ns) | 3.5 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Number of Elements | 1 |
