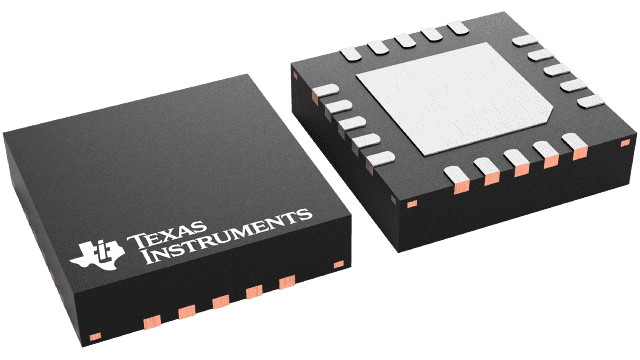

CC1101RGPR
Availability
Design risk
Price trend
Lead time
Low-power Sub-1 GHz wireless transceiver 20-QFN -40 to 85
| Width (mm) | 4.0000 |
| Length (mm) | 4.0000 |
| JESD-30 Code | S-PQCC-N20 |
| Package Code | HVQCCN |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Telecom IC Type | RF AND BASEBAND CIRCUIT |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) |
| Data Rate (Mbps) | 0.5000000000000000 |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Terminal Pitch (mm) | 0.500 |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 1.0000 |
| Supply Voltage-Nom (V) | 3.0000000000000000 |
| Package Equivalence Code | LCC20,.16SQ,20 |
| Moisture Sensitivity Level | 3 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
