MT41K256M8DA-125AIT:K
Availability
Design risk
Price trend
Lead time

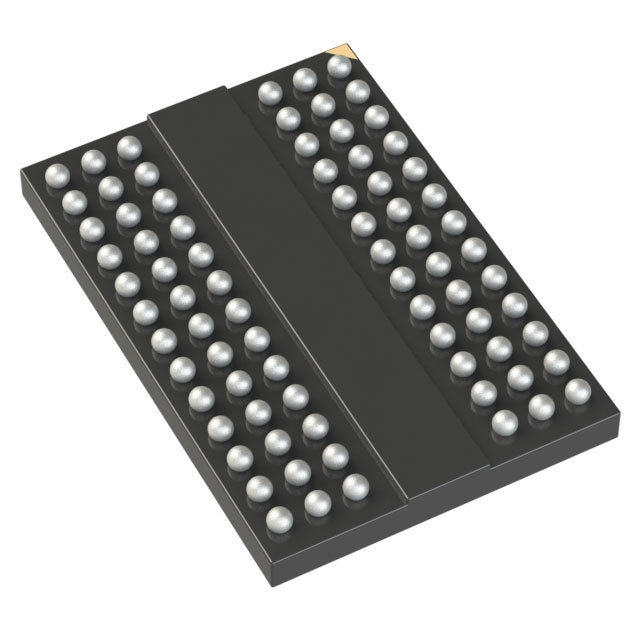

DRAM Chip DDR3L SDRAM 2Gbit 256Mx8 1.35V Automotive AEC-Q100 78-Pin FBGA Tray
| I/O Type | COMMON |
| Technology | CMOS |
| Width (mm) | 8 |
| Access Mode | MULTI BANK PAGE BURST |
| Length (mm) | 10.5 |
| JESD-30 Code | R-PBGA-B78 |
| Memory Width | 8 |
| Package Code | TFBGA |
| Self Refresh | YES |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | GRID ARRAY, THIN PROFILE, FINE PITCH |
| Surface Mount | YES |
| Terminal Form | BALL |
| J-STD-609 Code | e1 |
| Memory IC Type | DDR3L DRAM |
| Operating Mode | SYNCHRONOUS |
| Refresh Cycles | 8192 |
| Number of Ports | 1 |
| Terminal Finish | TIN SILVER COPPER |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | BOTTOM |
| Additional Feature | AUTO/SELF REFRESH |
| Memory Organization | 256MX8 |
| Number of Functions | 1 |
| Number of Terminals | 78 |
| Terminal Pitch (mm) | 0.8 |
| Number of Words Code | 256M |
| Memory Density (bits) | 2147483648 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | 3-STATE |
| Seated Height-Max (mm) | 1.2 |
| Supply Voltage-Max (V) | 1.45 |
| Supply Voltage-Min (V) | 1.283 |
| Supply Voltage-Nom (V) | 1.35 |
| Number of Words (words) | 268435456 |
| Sequential Burst Length | 8 |
| Standby Current-Max (A) | 0.012 |
| Supply Current-Max (mA) | 195 |
| Interleaved Burst Length | 8 |
| Package Equivalence Code | BGA78,9X13,32 |
| Clock Frequency-Max (MHz) | 800 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Screening Level / Reference Standard | AEC-Q100 |
