MT40A2G8SA-062EIT:F
Availability
Design risk
Price trend
Lead time

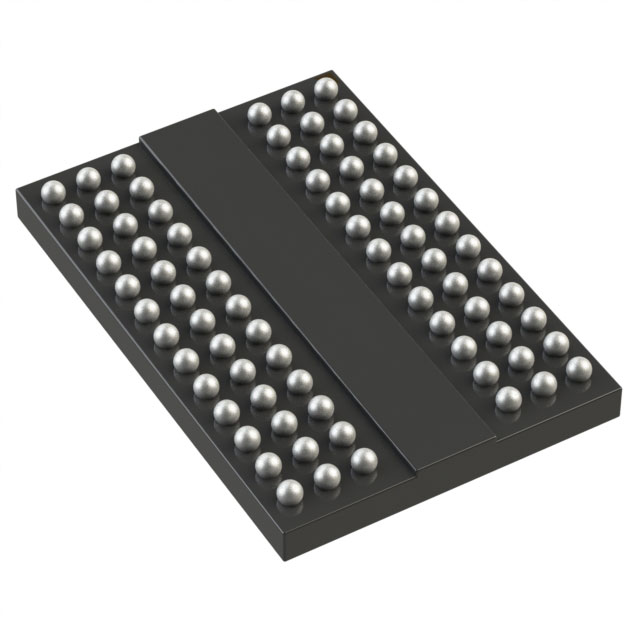

DRAM Chip DDR4 SDRAM 16Gbit 2Gx8 1.2V 78-Pin FBGA Tray
| I/O Type | COMMON |
| Technology | CMOS |
| Width (mm) | 7.5000 |
| Access Mode | MULTI BANK PAGE BURST |
| Length (mm) | 11.0000 |
| JESD-30 Code | R-PBGA-B78 |
| Memory Width | 8 |
| Package Code | TFBGA |
| Self Refresh | YES |
| Package Shape | RECTANGULAR |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH |
| Surface Mount | YES |
| Terminal Form | BALL |
| Memory IC Type | DDR4 DRAM |
| Operating Mode | SYNCHRONOUS |
| Refresh Cycles | 8192 |
| Number of Ports | 1 |
| Terminal Position | BOTTOM |
| Memory Organization | 2GX8 |
| Number of Functions | 1 |
| Number of Terminals | 78 |
| Terminal Pitch (mm) | 0.800 |
| Access Time-Max (ns) | 19.0000000000000000 |
| Number of Words Code | 2G |
| Memory Density (bits) | 17179869184.0000000000000000 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | 3-STATE |
| Seated Height-Max (mm) | 1.2000 |
| Supply Voltage-Max (V) | 1.26000 |
| Supply Voltage-Min (V) | 1.14000 |
| Supply Voltage-Nom (V) | 1.2 |
| Number of Words (words) | 2147483648.0000000000000000 |
| Sequential Burst Length | 4,8 |
| Standby Current-Max (A) | 0.036000000000000 |
| Supply Current-Max (mA) | 167.000000000000000 |
| Interleaved Burst Length | 4,8 |
| Package Equivalence Code | BGA78,9X13,32 |
| Clock Frequency-Max (MHz) | 1600.00000 |
| Operating Temperature-Max (Cel) | 95.0 |
| Operating Temperature-Min (Cel) | -40.0 |
