MT25QL128ABA1EW9-0SITTR
Availability
Design risk
Price trend
Lead time

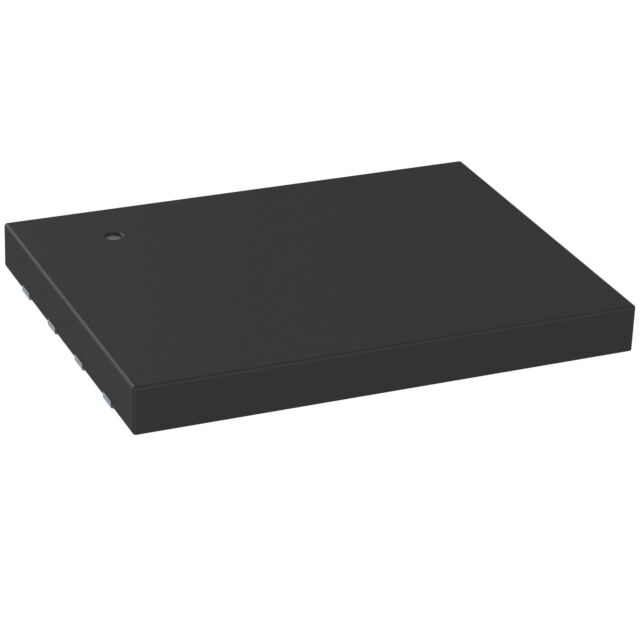

NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 128M-bit 128M/64M/32M x 1/2-bit/4-bit 6ns 8-Pin WPDFN EP T/R
| Type | NOR TYPE |
| Technology | CMOS |
| Width (mm) | 6 |
| Length (mm) | 8 |
| JESD-30 Code | R-PDSO-N8 |
| Memory Width | 8 |
| Package Code | HVSON |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| Memory IC Type | FLASH |
| Operating Mode | SYNCHRONOUS |
| Parallel/Serial | SERIAL |
| Serial Bus Type | QSPI |
| Write Protection | HARDWARE/SOFTWARE |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Memory Organization | 16MX8 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Terminal Pitch (mm) | 1.27 |
| Number of Words Code | 16M |
| Memory Density (bits) | 134217728 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | 3-STATE |
| Seated Height-Max (mm) | 0.8 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 2.7 |
| Supply Voltage-Nom (V) | 3 |
| Data Retention Time-Min | 20 |
| Number of Words (words) | 16777216 |
| Programming Voltage (V) | 3 |
| Standby Current-Max (A) | 0.00013 |
| Supply Current-Max (mA) | 94 |
| Package Equivalence Code | SOLCC8,.3 |
| Clock Frequency-Max (MHz) | 133 |
| Peak Reflow Temperature (Cel) | 260 |
| Endurance (Write/Erase Cycles) | 100000 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
