IS21ES08G-JCLI-TR
Availability
Design risk
Price trend
Lead time

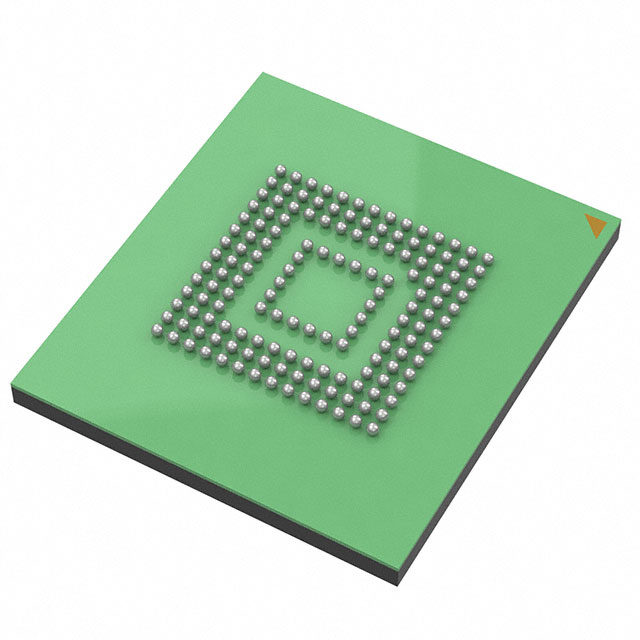

8 GB, 153 BALL FBGA, 3.3V, ROHS, T&R
| Technology | CMOS |
| Width (mm) | 11.5000 |
| Length (mm) | 13.0000 |
| JESD-30 Code | R-PBGA-B153 |
| Memory Width | 8 |
| Package Code | VFBGA |
| Package Shape | RECTANGULAR |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH |
| Surface Mount | YES |
| Terminal Form | BALL |
| Memory IC Type | FLASH |
| Operating Mode | SYNCHRONOUS |
| Parallel/Serial | PARALLEL |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | BOTTOM |
| Memory Organization | 8GX8 |
| Number of Functions | 1 |
| Number of Terminals | 153 |
| Terminal Pitch (mm) | 0.500 |
| Number of Words Code | 8G |
| Memory Density (bits) | 68719476736.0000000000000000 |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 1.0000 |
| Supply Voltage-Max (V) | 3.60000 |
| Supply Voltage-Min (V) | 2.70000 |
| Supply Voltage-Nom (V) | 3.3 |
| Number of Words (words) | 8589934592.0000000000000000 |
| Programming Voltage (V) | 3.3 |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Operating Temperature-Max (Cel) | 85.0 |
| Operating Temperature-Min (Cel) | -40.0 |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
