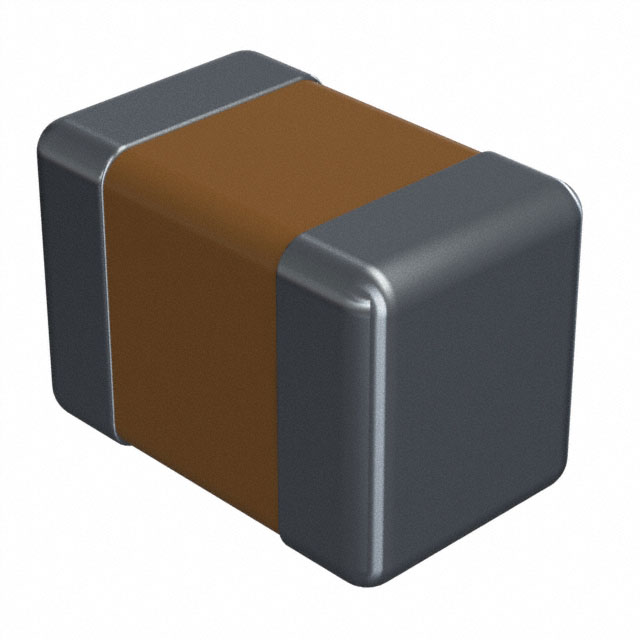

SH21B683K500CT
Availability
Design risk
Price trend
Lead time
| Size Code | 0805 |
| Multilayer | Yes |
| Width (mm) | 1.25 |
| Height (mm) | 1.25 |
| Length (mm) | 2 |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style (Meter) | SMT |
| Capacitor Type | CERAMIC CAPACITOR |
| J-STD-609 Code | e3 |
| Packing Method | TR, PLASTIC, 7 INCH |
| Terminal Shape | WRAPAROUND |
| Terminal Finish | TIN OVER NICKEL |
| Capacitance (uF) | 0.068 |
| Mounting Feature | SURFACE MOUNT |
| Dielectric Material | CERAMIC |
| Number of Terminals | 2 |
| Negative Tolerance (%) | 10 |
| Positive Tolerance (%) | 10 |
| Temperature Coefficient (ppm/Cel) | 15% |
| Rated DC Voltage (URdc) (V) | 50 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -55 |
| Temperature Characteristics Code | X7R |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Walsin Technology Corporation SH21B683K500CT in the documentation section.
CAP CER 0.068UF 50V X7R 0805
As a typical representative of the subcategory Passives, SH21B683K500CT is used to control the level of current and voltage in electrical circuits. Its CAP CER 0.068UF 50V X7R 0805 ensures stable resistance, which is critical for precise measurements and component protection.
SH21B683K500CT from the category Passives by manufacturer Walsin Technology Corporation provides precise current limitation in the scheme. Thanks to its CAP CER 0.068UF 50V X7R 0805, it contributes to stable operation of electronic devices, preventing overloads and voltage fluctuations.
