LMC7101BIM5X/NOPB
Availability
Design risk
Price trend
Lead time

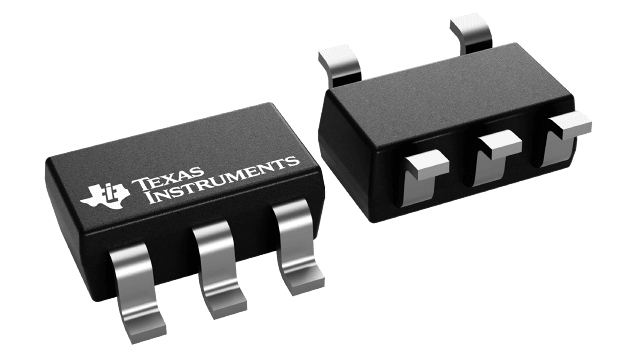

Single, 15.5-V, 1.1-MHz operational amplifier 5-SOT-23 -40 to 85
| Power | NO |
| Low-Bias | YES |
| Wideband | NO |
| Low-Offset | NO |
| Micropower | YES |
| Technology | CMOS |
| Width (mm) | 1.6 |
| Length (mm) | 2.9 |
| JESD-30 Code | R-PDSO-G5 |
| Package Code | LSSOP |
| Sub Category | Operational Amplifier |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Amplifier Type | General Purpose |
| J-STD-609 Code | e3 |
| Packing Method | TR |
| Terminal Finish | Matte Tin (Sn) |
| Amp Architecture | VOLTAGE-FEEDBACK |
| Voltage Gain-Min | 34000 |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Programmable Power | NO |
| Number of Functions | 1 |
| Number of Terminals | 5 |
| Terminal Pitch (mm) | 0.95 |
| Slew Rate-Min (V/us) | 0.4 |
| Slew Rate-Nom (V/us) | 1.1 |
| Package Body Material | PLASTIC/EPOXY |
| Frequency Compensation | YES |
| Seated Height-Max (mm) | 1.45 |
| Supply Voltage-Nom (V) | 3 |
| Supply Current-Max (mA) | 0.95 |
| Unity Gain BW-Nom (kHz) | 1100 |
| Package Equivalence Code | TSOP5/6,.11,37 |
| Moisture Sensitivity Level | 1 |
| Supply Voltage Limit-Max (V) | 16 |
| Input Offset Voltage-Max (uV) | 3000 |
| Peak Reflow Temperature (Cel) | 260 |
| Negative Supply Voltage-Nom (V) | 0 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Bias Current-Max (IIB) @25C (uA) | 6.4E-5 |
| Neg Supply Voltage Limit-Max (V) | 0 |
| Common-mode Reject Ratio-Min (dB) | 50 |
| Common-mode Reject Ratio-Nom (dB) | 82 |
| Average Bias Current-Max (IIB) (uA) | 6.4E-5 |
| Input Offset Current-Max (IIO) (uA) | 3.2E-5 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
