LP5912-3.3DRVT TEXAS INSTRUMENTS INC

LP5912-3.3DRVT TEXAS INSTRUMENTS INC
Availability
Unavailable
LP5912-3.3DRVT Availability: Out of Stock
Design risk
Low
Design risk
Price trend
Increasing
Price trend
Lead time
Stable
Lead time
15 results found
ADE9000ACPZ
ADE9000ACPZ Availability: Out of Stock
Constrained
Low
Low
Decreasing
Decreasing
Increasing
Increasing
CR-2032L/BD
CR-2032L/BD Availability: In Stock
Available
Low
Low
Stable
Stable
Decreasing
Decreasing
WR04X223JTL
WR04X223JTL Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
ZED-F9P-04B
ZED-F9P-04B Availability: In Stock
Available
Low
Low
Increasing
Increasing
Stable
Stable
IPB200N25N3G
IPB200N25N3G Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
NEO-6M-0-001
NEO-6M-0-001 Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable
WR06X1000FGL
WR06X1000FGL Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
0402B331K250CT
0402B331K250CT Availability: Out of Stock
Constrained
Low
Low
Increasing
Increasing
Stable
Stable
0805N681J501CT
0805N681J501CT Availability: Out of Stock
Constrained
Medium
Medium
Stable
Stable
Stable
Stable
CL05A475MP5NRNC
CL05A475MP5NRNC Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
BSCH001005058N2...
BSCH001005058N2JCS Availability: Out of Stock
Unavailable
Low
Low
Stable
Stable
Stable
Stable
GRM188R71H102KA...
GRM188R71H102KA01D Availability: Out of Stock
Unavailable
High
High
Decreasing
Decreasing
Stable
Stable
LT3990IMSE-5#TR...
LT3990IMSE-5#TRPBF Availability: Out of Stock
Unavailable
Low
Low
Increasing
Increasing
Stable
Stable
S-80830CNUA-B8P...
S-80830CNUA-B8PT2G Availability: In Stock
Available
Medium
Medium
Increasing
Increasing
Stable
Stable
S40FC008C3B1I00...
S40FC008C3B1I00000 Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable

Semiconductors

Other Semiconductors

Lead Time     12 weeks

Datasheet

    Download LP5912-3.3DRVT datasheet LP5912-3.3DRVT

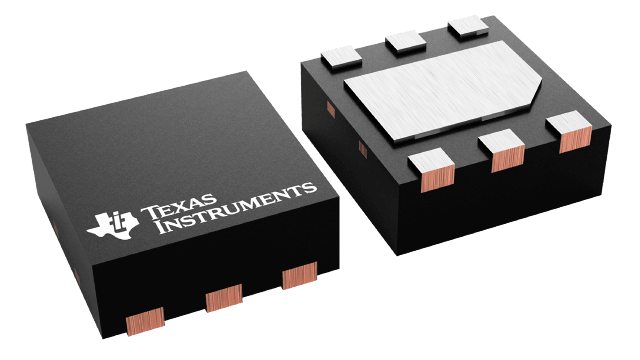

500-mA low-noise low-IQ low-dropout voltage regulator with reverse current protect 6-WSON -40 to 125

Technical Data

Manufacturer texas instruments inc
MPN LP5912-3.3DRVT
Technology BICMOS
Width (mm) 2.0000
Length (mm) 2.0000
JESD-30 Code S-PDSO-N6
Package Code HVSON
Adjustability FIXED
Package Shape SQUARE
Package Style ( Meter ) SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Surface Mount YES
Terminal Form NO LEAD
J-STD-609 Code e4
Packing Method TR
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Outputs 1.0000
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 6.0000
Terminal Pitch (mm) 0.6500
Input Voltage-Max (V) 6.5000
Input Voltage-Min (V) 3.8000
Package Body Material PLASTIC/EPOXY
Seated Height-Max (mm) 0.8000
Line Regulation-Max (V) 0.0713
Load Regulation-Max (V) 0.0360
Output Current1-Max (A) 0.5000
Output Voltage1-Max (V) 3.3660
Output Voltage1-Min (V) 3.2340
Output Voltage1-Nom (V) 3.3000
Dropout Voltage1-Max (V) 0.1800
Dropout Voltage1-Nom (V) 0.1500
Voltage Tolerance-Max (%) 3.0000
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Input Voltage Absolute-Max (V) 7.0000
Operating Temperature TJ-Max (Cel) 125.0000
Operating Temperature TJ-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, LP5912-3.3DRVT optimizes energy distribution in electronic devices. Its 500-mA low-noise low-IQ low-dropout voltage regulator with reverse current protect 6-WSON -40 to 125 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, LP5912-3.3DRVT ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for LP5912-3.3DRVT in the documentation section.

500-mA low-noise low-IQ low-dropout voltage regulator with reverse current protect 6-WSON -40 to 125
