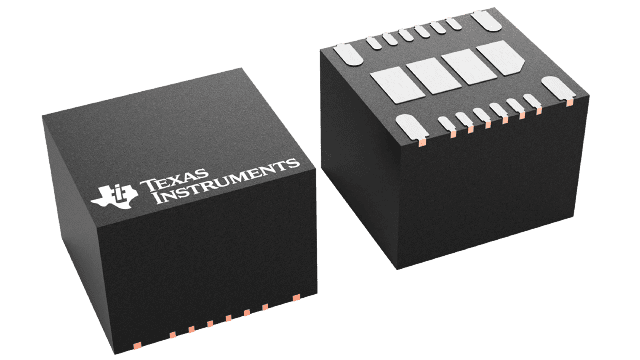

TPSM63606RDLR
Availability
Design risk
Price trend
Lead time
High-density, 36-V input, 1-V to 16-V output, 6-A power module in 5-mm x 5.5-mm enhanced HotRod™ QFN 20-B3QFN -40 to 125
| Width (mm) | 5 |
| Length (mm) | 5.5 |
| Control Mode | CURRENT-MODE |
| JESD-30 Code | R-PDSO-N20 |
| Package Code | HSON |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, HEAT SINK/SLUG |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Control Technique | PULSE WIDTH MODULATION |
| Number of Outputs | 1 |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Input Voltage-Max (V) | 36 |
| Input Voltage-Min (V) | 3 |
| Input Voltage-Nom (V) | 24 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Output Current-Max (A) | 6 |
| Output Voltage-Max (V) | 16 |
| Output Voltage-Min (V) | 1 |
| Output Voltage-Nom (V) | 3.3 |
| Seated Height-Max (mm) | 4.1 |
| Switcher Configuration | BUCK-BOOST |
| Supply Current-Max (mA) | 2 |
| Package Equivalence Code | SOLCC20,(UNSPC) |
| Moisture Sensitivity Level | 3 |
| Peak Reflow Temperature (Cel) | 250 |
| Switching Frequency-Max (kHz) | 2200 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated TPSM63606RDLR in the documentation section.
High-density, 36-V input, 1-V to 16-V output, 6-A power module in 5-mm x 5.5-mm enhanced HotRod™ QFN 20-B3QFN -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, TPSM63606RDLR optimizes energy distribution in electronic devices. Its High-density, 36-V input, 1-V to 16-V output, 6-A power module in 5-mm x 5.5-mm enhanced HotRod™ QFN 20-B3QFN -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, TPSM63606RDLR ensures stable output voltage even when the load changes. Its High-density, 36-V input, 1-V to 16-V output, 6-A power module in 5-mm x 5.5-mm enhanced HotRod™ QFN 20-B3QFN -40 to 125 makes it a reliable element in multi-level power systems.
