PESD5V0C1USFYL
Availability
Design risk
Price trend
Lead time

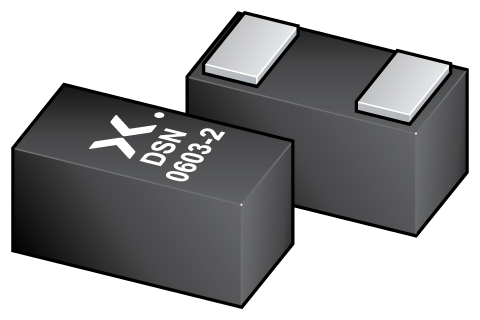

Ultra low capacitance unidirectional ESD protection diode
| Polarity | UNIDIRECTIONAL |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Technology | AVALANCHE |
| JESD-30 Code | R-PBCC-N2 |
| Configuration | SINGLE |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | CHIP CARRIER |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| Terminal Position | BOTTOM |
| Additional Feature | IEC-61643-321 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Package Body Material | PLASTIC/EPOXY |
| Diode Element Material | SILICON |
| Breakdown Voltage-Min (V) | 5.5 |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Rep Pk Reverse Voltage-Max (V) | 5 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Screening Level / Reference Standard | IEC-60134; IEC-61000-4-2, 4-5 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Nexperia BV PESD5V0C1USFYL in the documentation section.
Ultra low capacitance unidirectional ESD protection diode
As part of the category Semiconductors and subcategory Semiconductors, PESD5V0C1USFYL optimizes energy distribution in electronic devices. Its Ultra low capacitance unidirectional ESD protection diode allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, PESD5V0C1USFYL ensures stable output voltage even when the load changes. Its Ultra low capacitance unidirectional ESD protection diode makes it a reliable element in multi-level power systems.
