Semiconductors

Transistors

Lead Time     12 weeks

Datasheet

    Download CSD16340Q3 datasheet CSD16340Q3

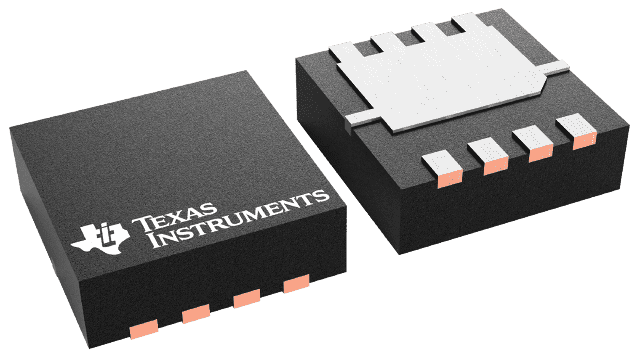

25-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 5.5 mOhm 8-VSON-CLIP -55 to 150

Technical Data

Manufacturer texas instruments inc
MPN CSD16340Q3
Application SWITCHING
JESD-30 Code S-PDSO-N8
Configuration SINGLE
Package Shape SQUARE
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form NO LEAD
FET Technology METAL-OXIDE SEMICONDUCTOR
J-STD-609 Code e3
Operating Mode ENHANCEMENT MODE
Case Connection DRAIN
Terminal Finish Matte Tin (Sn)
DLA Qualification Not Qualified
Terminal Position DUAL
Additional Feature AVALANCHE RATED
Number of Elements 1.0000
Number of Terminals 8.0000
Package Body Material PLASTIC/EPOXY
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (W) 3.0000
Drain Current-Max (ID) (A) 21.0000
Moisture Sensitivity Level 1.0000
Transistor Element Material SILICON
DS Breakdown Voltage-Min (V) 25.0000
Feedback Cap-Max (Crss) (pF) 69.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 150.0000
Operating Temperature-Min (Cel) -55.0000
Avalanche Energy Rating (Eas) (mJ) 80.0000
Pulsed Drain Current-Max (IDM) (A) 115.0000
Drain-source On Resistance-Max (ohm) 0.0078
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
