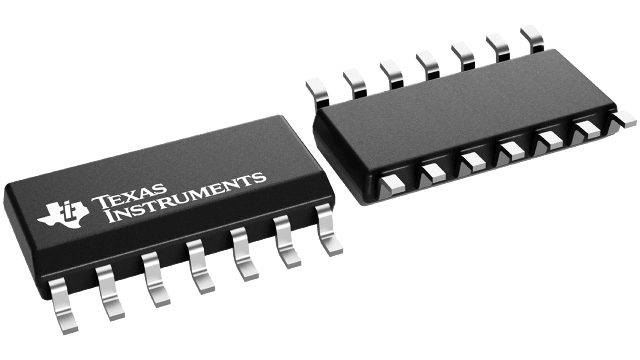

TLV2374IPWR

TEXAS INSTRUMENTS INC

TLV2374IPWR

TLV2374IPWR

TLV2374IPWR

Availability
Unavailable
Availability
Design risk
Low
Design risk
Price trend
Increasing
Price trend
Lead time
Stable
Lead time
15 results found
74HC4051BQ
Constrained
Constrained
Medium
Medium
Stable
Stable
Stable
Stable
BSC012N06NS
Available
Available
High
High
Stable
Stable
Stable
Stable
MAX668EUB+T
Available
Available
Medium
Medium
Decreasing
Decreasing
Stable
Stable
AUIPS2052GTR
Available
Available
High
High
Stable
Stable
Decreasing
Decreasing
RMC32-1R2FTP
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
WR08W6R80FTL
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Stable
Stable
WR08X2001FGL
Available
Available
High
High
Stable
Stable
Stable
Stable
MAX3373EEKA+T
Available
Available
Medium
Medium
Decreasing
Decreasing
Stable
Stable
SMV1130-079LF
Available
Available
High
High
Stable
Stable
Stable
Stable
10M08SAE144C8G
Available
Available
High
High
Stable
Stable
Stable
Stable
ZX80-B-5SA(31)
Available
Available
Low
Low
Decreasing
Decreasing
Stable
Stable
LT8609HMSE#TRPB...
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
XC3S5000-4FGG90...
Constrained
Constrained
High
High
Stable
Stable
Stable
Stable
XC6SLX75-2FGG48...
Constrained
Constrained
High
High
Stable
Stable
Stable
Stable
MT53E1G32D2FW-0...
Unavailable
Unavailable
Low
Low
Stable
Stable
Increasing
Increasing

Semiconductors

Amplifiers

Lead Time     12 weeks
Data Sheet     Download TLV2374IPWR datasheet TLV2374IPWR

Quad, 16-V, 3-MHz, RRIO operational amplifier 14-TSSOP -40 to 125

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN TLV2374IPWR
Power NO
Low-Bias YES
Wideband YES
Low-Offset NO
Micropower NO
Technology CMOS
Width (mm) 4.4000
Length (mm) 5.0000
JESD-30 Code R-PDSO-G14
Package Code TSSOP
Sub Category Operational Amplifier
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
Amplifier Type General Purpose
J-STD-609 Code e4
Packing Method TR
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Amp Architecture VOLTAGE-FEEDBACK
Voltage Gain-Min 79432.0000
DLA Qualification Not Qualified
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Programmable Power NO
Number of Functions 4.0000
Number of Terminals 14.0000
Terminal Pitch (mm) 0.6500
Slew Rate-Min (V/us) 1.0000
Slew Rate-Nom (V/us) 2.4000
Package Body Material PLASTIC/EPOXY
Frequency Compensation YES
Seated Height-Max (mm) 1.2000
Supply Voltage-Nom (V) 5.0000
Supply Current-Max (mA) 2.6400
Unity Gain BW-Nom (kHz) 3000.0000
Package Equivalence Code TSSOP14,.25
Moisture Sensitivity Level 1.0000
Supply Voltage Limit-Max (V) 16.5000
Input Offset Voltage-Max (uV) 4500.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Bias Current-Max (IIB) @25C (uA) 0.0001
Common-mode Reject Ratio-Min (dB) 55.0000
Common-mode Reject Ratio-Nom (dB) 72.0000
Average Bias Current-Max (IIB) (uA) 0.0001
Input Offset Current-Max (IIO) (uA) 0.0001
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
