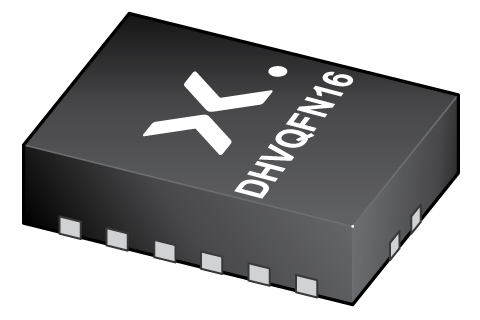

74HC4051BQ
Availability
Design risk
Price trend
Lead time
| Technology | CMOS |
| Width (mm) | 2.5 |
| Length (mm) | 3.5 |
| JESD-30 Code | R-PQCC-N16 |
| Package Code | HVQCCN |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| DLA Qualification | Not Qualified |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | QUAD |
| Additional Feature | ALSO OPERATES ON VCC-VEE 2 V TO 10 V SUPPLY |
| Number of Channels | 8 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Terminal Pitch (mm) | 0.5 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER |
| Seated Height-Max (mm) | 1 |
| Supply Voltage-Max (V) | 10 |
| Supply Voltage-Min (V) | 2 |
| Supply Voltage-Nom (V) | 5 |
| Switch-on Time-Max (ns) | 104 |
| Package Equivalence Code | LCC16,.1X.14,20 |
| Switch-off Time-Max (ns) | 87 |
| Moisture Sensitivity Level | 1 |
| Off-state Isolation-Nom (dB) | 50 |
| On-state Resistance-Max (ohm) | 180 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| On-state Resistance Match-Nom (ohm) | 9 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
