Semiconductors

Other Semiconductors

Data Sheet     Download 74HC4053BQ datasheet 74HC4053BQ

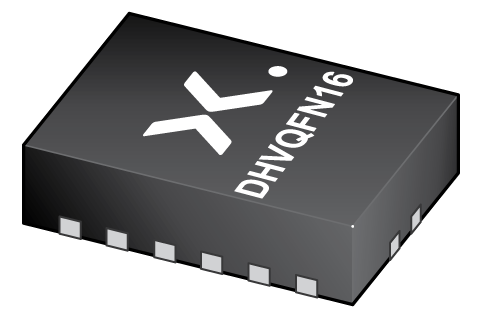

SPDT, 3 Func, 1 Channel, CMOS, PQCC16

Technical Data

Manufacturer NEXPERIA
MPN 74HC4053BQ
Technology CMOS
Width (mm) 2.5000
Length (mm) 3.5000
JESD-30 Code R-PQCC-N16
Package Code HVQCCN
Package Shape RECTANGULAR
Package Style ( Meter ) CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Surface Mount YES
Terminal Form NO LEAD
J-STD-609 Code e4
Terminal Finish NICKEL PALLADIUM GOLD SILVER
DLA Qualification Not Qualified
Temperature Grade AUTOMOTIVE
Terminal Position QUAD
Number of Channels 1.0000
Number of Functions 3.0000
Number of Terminals 16.0000
Terminal Pitch (mm) 0.5000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SPDT
Seated Height-Max (mm) 1.0000
Supply Voltage-Max (V) 10.0000
Supply Voltage-Min (V) 2.0000
Supply Voltage-Nom (V) 5.0000
Switch-on Time-Max (ns) 37.0000
Package Equivalence Code LCC16,.1X.14,20
Switch-off Time-Max (ns) 36.0000
Moisture Sensitivity Level 1.0000
Off-state Isolation-Nom (dB) 50.0000
On-state Resistance-Max (ohm) 160.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
On-state Resistance Match-Nom (ohm) 8.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
