SN74GTL1655DGGR
Availability
Design risk
Price trend
Lead time

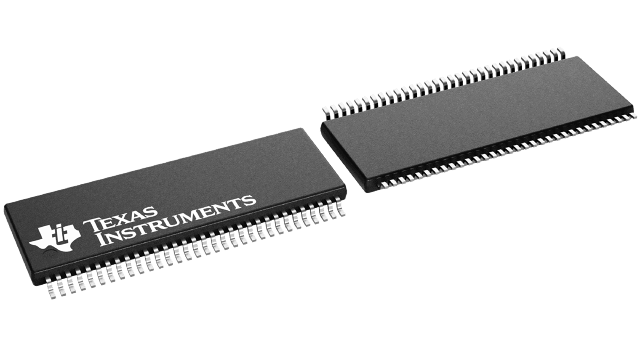

16-Bit LVTTL To GTL/GTL+ Universal Bus Transceivers with Live Insertion 64-TSSOP -40 to 85
| Family | GTL/TVC |
| Direction | BIDIRECTIONAL |
| Technology | BICMOS |
| Width (mm) | 6.1 |
| Length (mm) | 17 |
| Control Type | INDEPENDENT CONTROL |
| JESD-30 Code | R-PDSO-G64 |
| Package Code | TSSOP |
| Trigger Type | POSITIVE EDGE |
| Logic IC Type | REGISTERED BUS TRANSCEIVER |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Number of Bits | 8 |
| Packing Method | TR |
| Number of Ports | 2 |
| Output Polarity | TRUE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Number of Functions | 2 |
| Number of Terminals | 64 |
| Terminal Pitch (mm) | 0.5 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | 3-STATE |
| Propagation Delay (ns) | 5.8 |
| Seated Height-Max (mm) | 1.2 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3.3 |
| Supply Current-Max (mA) | 80 |
| Package Equivalence Code | TSSOP64,.32,20 |
| Moisture Sensitivity Level | 1 |
| Output Low Current-Max (mA) | 24 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Propagation Delay-Max@Nom-Sup (ns) | 6.5 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated SN74GTL1655DGGR in the documentation section.
16-Bit LVTTL To GTL/GTL+ Universal Bus Transceivers with Live Insertion 64-TSSOP -40 to 85
As part of the category Semiconductors and subcategory Semiconductors, SN74GTL1655DGGR optimizes energy distribution in electronic devices. Its 16-Bit LVTTL To GTL/GTL+ Universal Bus Transceivers with Live Insertion 64-TSSOP -40 to 85 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, SN74GTL1655DGGR ensures stable output voltage even when the load changes. Its 16-Bit LVTTL To GTL/GTL+ Universal Bus Transceivers with Live Insertion 64-TSSOP -40 to 85 makes it a reliable element in multi-level power systems.
