Interconnects

Board Connectors

Lead Time     12 weeks

Datasheet

    Download 20790-060E-02 datasheet 20790-060E-02

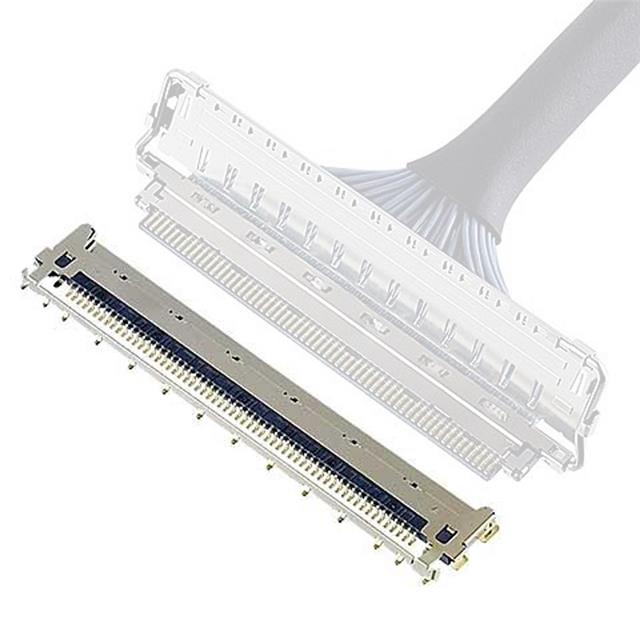

Receptacle Connector, 0.4mm Pitch, Height 1.2mm max

Technical Data

Manufacturer i-pex co ltd
MPN 20790-060E-02
Option GENERAL PURPOSE
Body Depth ( inch ) 0.2060
Durability ( Cycles ) 30.0000
Body Length ( inch ) 1.1500
Body Breadth ( inch ) 0.0320
Contact Style BELLOWED TYPE
Mounting Type BOARD
Connector Type BOARD CONNECTOR
Contact Gender FEMALE
Filter Feature NO
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Terminal Pitch ( mm ) 0.4000
Contact Pattern RECTANGULAR
Insulator Color BLACK
Body/Shell Style RECEPTACLE
Termination Type SURFACE MOUNT
Mounting Option 1 LOCKING
Plating Thickness ( inch ) 1u
Contact Resistance ( mohm ) 600.0000
Insulator Material LIQUID CRYSTAL POLYMER
Mating Information MULTIPLE MATING PARTS ARE AVAILABLE
Number Of PCB Rows 1.0000
Reference Standard UL
Insertion Force-Max ( N ) 29.1000
PCB Contact Pattern RECTANGULAR
Withdrawl Force-Min ( N ) 6.0000
Mating Contact Pitch ( inch ) 0.0160
Number Of Connectors ONE
UL Flammability Code 94V-0
Insulation Resistance ( ohm ) 1000000000.0000
Number of Rows Loaded 1.0000
Rated Current (Signal) ( A ) 0.3000
Total Number of Contacts 60.0000
Operating Temperature-Max ( Cel ) 85.0000
Operating Temperature-Min ( Cel ) -40.0000
Dielectric Withstanding Voltage ( V ) 250VAC
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

20790-060E-02 from the subcategory Board Connectors ensures strong and durable connections between components. It guarantees resistance to vibrations and frequent connections, which is particularly important in industrial and transportation systems.

Thanks to its construction, characteristic of Board Connectors, 20790-060E-02 allows wires to be quickly connected and disconnected without additional tools. Its Receptacle Connector, 0.4mm Pitch, Height 1.2mm max, makes it an ideal solution for systems that require regular maintenance.

You can download the user manual and technical specifications for 20790-060E-02 in the documentation section.

Receptacle Connector, 0.4mm Pitch, Height 1.2mm max
