SN74LVC2G125DCUR
Availability
Design risk
Price trend
Lead time

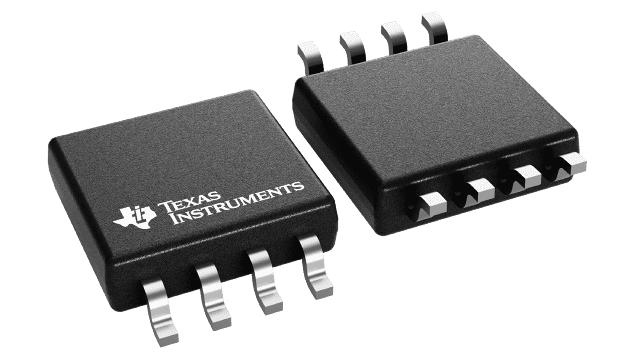

2-ch, 1.65-V to 5.5-V buffers with 3-state outputs 8-VSSOP -40 to 125
| Family | LVC/LCX/Z |
| Direction | UNIDIRECTIONAL |
| Technology | CMOS |
| Width (mm) | 2 |
| Length (mm) | 2.3 |
| Control Type | ENABLE LOW |
| JESD-30 Code | R-PDSO-G8 |
| Package Code | VSSOP |
| Logic IC Type | BUS DRIVER |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Number of Bits | 1 |
| Packing Method | TR |
| Number of Ports | 2 |
| Output Polarity | TRUE |
| Terminal Finish | Matte Tin (Sn) |
| DLA Qualification | Not Qualified |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Terminal Pitch (mm) | 0.5 |
| Load Capacitance (pF) | 50 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | 3-STATE |
| Propagation Delay (ns) | 9.1 |
| Seated Height-Max (mm) | 0.9 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 1.65 |
| Supply Voltage-Nom (V) | 3.3 |
| Supply Current-Max (mA) | 0.01 |
| Package Equivalence Code | TSSOP8,.12,20 |
| Moisture Sensitivity Level | 1 |
| Output Low Current-Max (mA) | 32 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Propagation Delay-Max@Nom-Sup (ns) | 4.3 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Number of Elements | 2 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated SN74LVC2G125DCUR in the documentation section.
2-ch, 1.65-V to 5.5-V buffers with 3-state outputs 8-VSSOP -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, SN74LVC2G125DCUR optimizes energy distribution in electronic devices. Its 2-ch, 1.65-V to 5.5-V buffers with 3-state outputs 8-VSSOP -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, SN74LVC2G125DCUR ensures stable output voltage even when the load changes. Its 2-ch, 1.65-V to 5.5-V buffers with 3-state outputs 8-VSSOP -40 to 125 makes it a reliable element in multi-level power systems.
