SN74HC164PWR

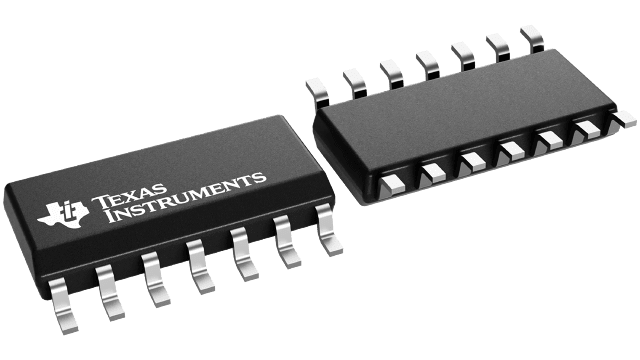

8-Bit Parallel-Out Serial Shift Registers 14-TSSOP -40 to 125

Request price

Technical Data

Manufacturer texas instruments inc

MPN SN74HC164PWR

Family HC/UH

Direction RIGHT

Technology CMOS

Width (mm) 4.4000

Length (mm) 5.0000

JESD-30 Code R-PDSO-G14

Package Code TSSOP

Trigger Type POSITIVE EDGE

Logic IC Type SERIAL IN PARALLEL OUT

Package Shape RECTANGULAR

Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

Surface Mount YES

Terminal Form GULL WING

J-STD-609 Code e4

Number of Bits 8.0000

Packing Method TR

fmax-Min (MHz) 24.0000

Output Polarity TRUE

Schmitt Trigger NO

Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)

DLA Qualification Not Qualified

Temperature Grade AUTOMOTIVE

Terminal Position DUAL

Additional Feature AND-GATED SERIAL INPUTS (A AND B)

Number of Functions 1.0000

Number of Terminals 14.0000

Terminal Pitch (mm) 0.6500

Load Capacitance (pF) 50.0000

Package Body Material PLASTIC/EPOXY

Propagation Delay (ns) 220.0000

Seated Height-Max (mm) 1.2000

Supply Voltage-Max (V) 6.0000

Supply Voltage-Min (V) 2.0000

Supply Voltage-Nom (V) 5.0000

Supply Current-Max (mA) 0.0800

Package Equivalence Code TSSOP14,.25

Frequency-Max@Nom-Sup (Hz) 25000000.0000

Moisture Sensitivity Level 1.0000

Output Low Current-Max (mA) 5.2000

Peak Reflow Temperature (Cel) 260.0000

Operating Temperature-Max (Cel) 125.0000

Operating Temperature-Min (Cel) -40.0000

Propagation Delay-Max@Nom-Sup (ns) 38.0000

Time@Peak Reflow Temperature-Max (s) 30.0000

Number of Elements 1.0000

Availability In stock
