20682-050E-02 I-PEX CO LTD

20682-050E-02 I-PEX CO LTD
Availability
Available
20682-050E-02 Availability: In Stock
Design risk
High
Design risk
Price trend
Decreasing
Price trend
Lead time
Stable
Lead time
15 results found
530470410
530470410 Availability: In Stock
Available
Medium
Medium
Decreasing
Decreasing
Stable
Stable
CPC5620ATR
CPC5620ATR Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable
TMP100NA/3K
TMP100NA/3K Availability: Out of Stock
Unavailable
Low
Low
Increasing
Increasing
Increasing
Increasing
DS3232SN#T&R
DS3232SN#T&R Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
LTM4677IY#PBF
LTM4677IY#PBF Availability: In Stock
Available
Medium
Medium
Stable
Stable
Increasing
Increasing
NCP51145MNTAG
NCP51145MNTAG Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable
OPA2340EA/2K5
OPA2340EA/2K5 Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
TS3A24157DGSR
TS3A24157DGSR Availability: In Stock
Available
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
0603B223J500CT
0603B223J500CT Availability: Out of Stock
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
0805B105K250CT
0805B105K250CT Availability: Out of Stock
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
BAV99S_R1_00001
BAV99S_R1_00001 Availability: Out of Stock
Constrained
Low
Low
Decreasing
Decreasing
Increasing
Increasing
BZG05C4V7-M3-18
BZG05C4V7-M3-18 Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
SF-2410SP200W-2
SF-2410SP200W-2 Availability: Out of Stock
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
SN74LVC2T45DCUR
SN74LVC2T45DCUR Availability: Out of Stock
Unavailable
Low
Low
Stable
Stable
Increasing
Increasing
XC3S500E-4FTG25...
XC3S500E-4FTG256C Availability: In Stock
Available
High
High
Stable
Stable
Decreasing
Decreasing

Interconnects

Board Connectors

Lead Time     12 weeks

Datasheet

    Download 20682-050E-02 datasheet 20682-050E-02

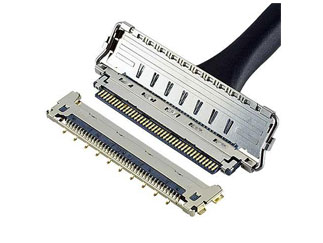

CABLINE-CA II Series 50 Position 0.4 mm Pitch Single Row Receptacle Connector

Technical Data

Manufacturer i-pex co ltd
MPN 20682-050E-02
Option GENERAL PURPOSE
Contact Style BELLOWED TYPE
Mounting Type BOARD
Connector Type FFC/FPC CONNECTOR
Contact Design PREASSEM CONN
Contact Gender FEMALE
Filter Feature NO
Mixed Contacts NO
Mounting Style STRAIGHT
Contact Pattern RECTANGULAR
Insulator Color BLACK
Body/Shell Style RECEPTACLE
Termination Type SURFACE MOUNT
Body Depth (inch) 0.1860
Mounting Option 1 LOCKING
Body Length (inch) 0.9920
Insulator Material LIQUID CRYSTAL POLYMER
Number of Contacts 50.0000
Number of PCB Rows 1.0000
Body Breadth (inch) 0.0300
Durability (Cycles) 30.0000
PCB Contact Pattern RECTANGULAR
Terminal Pitch (mm) 0.4000
Number of Connectors ONE
UL Flammability Code 94V-0
Number of Rows Loaded 1.0000
Insertion Force-Max (N) 24.2500
Withdrawl Force-Min (N) 5.0000
Plating Thickness (inch) 39u
Rated Current (Signal) (A) 1.0000
Insulation Resistance (ohm) 1000000000.0000
Mating Contact Pitch (inch) 0.0160
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Dielectric Withstanding Voltage (V) 250VAC
Screening Level / Reference Standard UL
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

20682-050E-02 from the subcategory Board Connectors ensures strong and durable connections between components. It guarantees resistance to vibrations and frequent connections, which is particularly important in industrial and transportation systems.

Thanks to its construction, characteristic of Board Connectors, 20682-050E-02 allows wires to be quickly connected and disconnected without additional tools. Its CABLINE-CA II Series 50 Position 0.4 mm Pitch Single Row Receptacle Connector, makes it an ideal solution for systems that require regular maintenance.

You can download the user manual and technical specifications for 20682-050E-02 in the documentation section.

CABLINE-CA II Series 50 Position 0.4 mm Pitch Single Row Receptacle Connector
