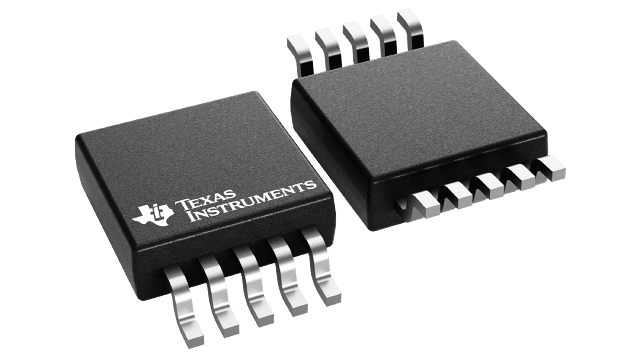

TS3A24157DGSR
Availability
Design risk
Price trend
Lead time
0.65-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 2-channel analog switch 10-VSSOP -40 to 85
| Output | SEPARATE OUTPUT |
| Switching | BREAK-BEFORE-MAKE |
| Width (mm) | 3 |
| Length (mm) | 3 |
| JESD-30 Code | S-PDSO-G10 |
| Package Code | TSSOP |
| Package Shape | SQUARE |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Additional Feature | Configuration : 2:1 SPDT |
| Number of Channels | 2 |
| Bandwidth-Nom (MHz) | 50.0000000000000000 |
| Number of Functions | 2 |
| Number of Terminals | 10 |
| Terminal Pitch (mm) | 0.5 |
| Input Voltage-Max (V) | 3.6000000000000000 |
| Input Voltage-Min (V) | 0E-16 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SPDT |
| Seated Height-Max (mm) | 1.1 |
| Signal Current-Max (A) | 0.100000000000000000 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 1.65 |
| Supply Voltage-Nom (V) | 1.8000000000000000 |
| Supply Current-Max (mA) | 0.001 |
| Switch-on Time-Max (ns) | 80.0000000000000000 |
| Package Equivalence Code | TSSOP10,.19,20 |
| Switch-off Time-Max (ns) | 40.0000000000000000 |
| Moisture Sensitivity Level | 1 |
| Off-state Isolation-Nom (dB) | 73 |
| On-state Resistance-Max (ohm) | 1.00000000 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| On-state Resistance Match-Nom (ohm) | 0.1500000000000000 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
