TS3USB30EDGSR
Availability
Design risk
Price trend
Lead time

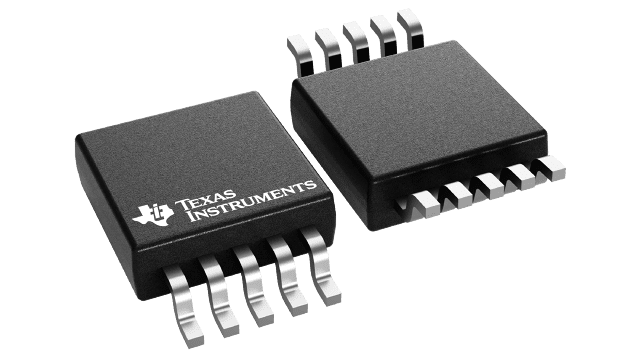

High-Speed USB 2.0 1:2 Mux/Demux Switch With Single Enable and ESD Protection 10-VSSOP -40 to 85
| Output (V) | SEPARATE OUTPUT |
| Switching (V) | BREAK-BEFORE-MAKE |
| Width (mm) | 3 |
| Length (mm) | 3 |
| JESD-30 Code | S-PDSO-G10 |
| Package Code | TSSOP |
| Package Shape | SQUARE |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Normal Position (V) | NC |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Additional Feature | Configuration : 2:1 SPDT |
| Number of Channels | 2 |
| Bandwidth-Nom (MHz) | 900 |
| Number of Functions | 1 |
| Number of Terminals | 10 |
| Terminal Pitch (mm) | 0.5 |
| Input Voltage-Max (V) | 4.3 |
| Input Voltage-Min (V) | 0 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | DIFFERENTIAL MULTIPLEXER |
| Seated Height-Max (mm) | 1.1 |
| Supply Voltage-Max (V) | 4.3 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3.3 |
| Supply Current-Max (mA) | 0.001 |
| Switch-on Time-Max (ns) | 30 |
| Switch-off Time-Max (ns) | 25 |
| Moisture Sensitivity Level | 1 |
| Off-state Isolation-Nom (dB) | 40 |
| On-state Resistance-Max (ohm) | 10 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| On-state Resistance Match-Nom (ohm) | 0.35 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
