CY8C29666-24LTXIT
Availability
Design risk
Price trend
Lead time

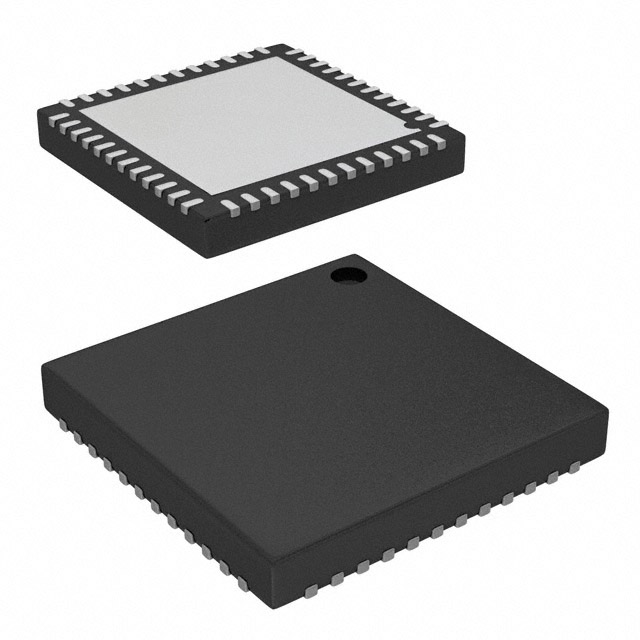

IC MCU 8BIT 32KB FLASH 48QFN
| Bit Size | 8 |
| CPU Family | M8C |
| Technology | CMOS |
| Width (mm) | 7 |
| Length (mm) | 7 |
| RAM (words) | 1024 |
| Speed (MHz) | 24 |
| JESD-30 Code | S-XQCC-N48 |
| Package Code | HVQCCN |
| Boundary Scan | NO |
| Package Shape | SQUARE |
| Package Style (Meter) | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Address Bus Width | 0 |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Additional Feature | ALSO OPERATES AT 3V SUPPLY |
| Number of I/O Lines | 44 |
| Number of Terminals | 48 |
| Program Memory Type | FLASH |
| Terminal Pitch (mm) | 0.5 |
| Data RAM Size (bytes) | 2048 |
| Package Body Material | UNSPECIFIED |
| Seated Height-Max (mm) | 1 |
| Supply Voltage-Max (V) | 5.25 |
| Supply Voltage-Min (V) | 4.75 |
| Supply Voltage-Nom (V) | 5 |
| External Data Bus Width | 0 |
| Supply Current-Max (mA) | 14 |
| Package Equivalence Code | LCC48,.27SQ,20 |
| Clock Frequency-Max (MHz) | 24 |
| Moisture Sensitivity Level | 3 |
| Program Memory Size (words) | 32768 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 20 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Cypress Semiconductor Corporation CY8C29666-24LTXIT in the documentation section.
IC MCU 8BIT 32KB FLASH 48QFN
As part of the category Semiconductors and subcategory Semiconductors, CY8C29666-24LTXIT optimizes energy distribution in electronic devices. Its IC MCU 8BIT 32KB FLASH 48QFN allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, CY8C29666-24LTXIT ensures stable output voltage even when the load changes. Its IC MCU 8BIT 32KB FLASH 48QFN makes it a reliable element in multi-level power systems.
