74HC4051D,653
Availability
Design risk
Price trend
Lead time
8-channel analog multiplexer/demultiplexer
| Technology | CMOS |
| Width (mm) | 3.9 |
| Length (mm) | 9.9 |
| JESD-30 Code | R-PDSO-G16 |

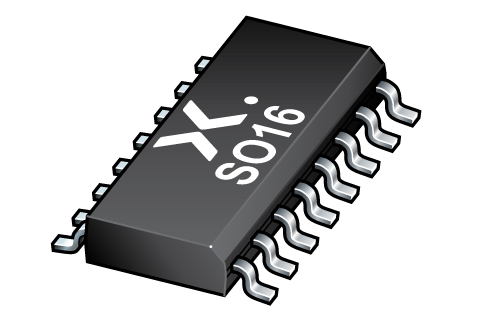

| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| DLA Qualification | Not Qualified |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Additional Feature | ALSO OPERATES ON VCC-VEE 2 V TO 10 V SUPPLY |
| Number of Channels | 8 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Terminal Pitch (mm) | 1.27 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER |
| Seated Height-Max (mm) | 1.75 |
| Supply Voltage-Max (V) | 10 |
| Supply Voltage-Min (V) | 2 |
| Supply Voltage-Nom (V) | 5.0000000000000000 |
| Switch-on Time-Max (ns) | 104.0000000000000000 |
| Switch-off Time-Max (ns) | 87.0000000000000000 |
| Moisture Sensitivity Level | 1 |
| Off-state Isolation-Nom (dB) | 50 |
| On-state Resistance-Max (ohm) | 180.00000000 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| On-state Resistance Match-Nom (ohm) | 9.0000000000000000 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Nexperia BV 74HC4051D,653 in the documentation section.
8-channel analog multiplexer/demultiplexer
As part of the category Semiconductors and subcategory Semiconductors, 74HC4051D,653 optimizes energy distribution in electronic devices. Its 8-channel analog multiplexer/demultiplexer allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, 74HC4051D,653 ensures stable output voltage even when the load changes. Its 8-channel analog multiplexer/demultiplexer makes it a reliable element in multi-level power systems.
