WR04X4700FTL
Availability
Design risk
Price trend
Lead time

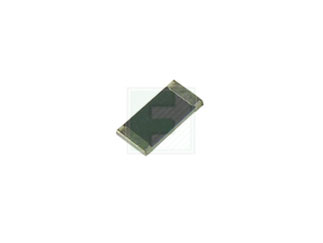

WR04 Series 0402 470 Ω ±1% 0.063 W ±100 ppm/°C Thick Film Chip Resistor
Size Code | 0402 |
Technology | METAL GLAZE/THICK FILM |
Construction | Rectangular |
Package Style (Meter) | SMT |
Resistor Type | FIXED RESISTOR |
Tolerance (%) | 1 |
J-STD-609 Code | e3 |
Packing Method | TR, Paper, 7 Inch |
Terminal Shape | WRAPAROUND |
Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier |
Mounting Feature | SURFACE MOUNT |
Resistance (ohm) | 470 |
Package Width (mm) | 0.5 |
Number of Terminals | 2 |
Package Height (mm) | 0.35 |
Package Length (mm) | 1 |
Working Voltage (V) | 50 |
Rated Temperature (Cel) | 70 |
Operating Temperature-Max (Cel) | 155 |
Operating Temperature-Min (Cel) | -55 |
Rated Power Dissipation (P) (W) | 0.0625 |
Temperature Coefficient (ppm/Cel) | 100 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Walsin Technology Corporation WR04X4700FTL in the documentation section.
WR04 Series 0402 470 Ω ±1% 0.063 W ±100 ppm/°C Thick Film Chip Resistor
As a typical representative of the subcategory Passives, WR04X4700FTL is used to control the level of current and voltage in electrical circuits. Its WR04 Series 0402 470 Ω ±1% 0.063 W ±100 ppm/°C Thick Film Chip Resistor ensures stable resistance, which is critical for precise measurements and component protection.
WR04X4700FTL from the category Passives by manufacturer Walsin Technology Corporation provides precise current limitation in the scheme. Thanks to its WR04 Series 0402 470 Ω ±1% 0.063 W ±100 ppm/°C Thick Film Chip Resistor, it contributes to stable operation of electronic devices, preventing overloads and voltage fluctuations.
