SN74LVC1T45QDCKRQ1
Availability
Design risk
Price trend
Lead time

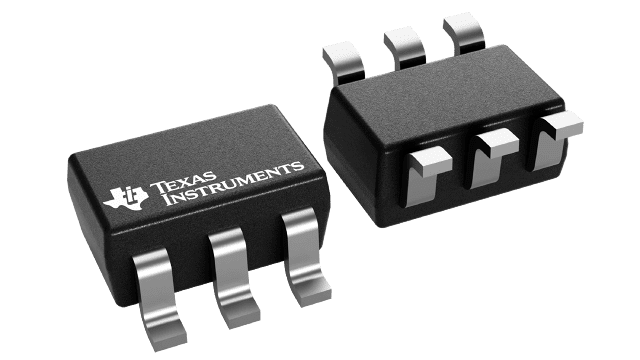

Automotive Single-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation 6-SC70 -40 to 125
| Family | LVC/LCX/Z |
| Direction | BIDIRECTIONAL |
| Technology | CMOS |
| Width (mm) | 1.25 |
| Length (mm) | 2 |
| Control Type | COMMON CONTROL |
| JESD-30 Code | R-PDSO-G6 |
| Package Code | TSSOP |
| Logic IC Type | BUS TRANSCEIVER |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Number of Bits | 1 |
| Packing Method | TR |
| Number of Ports | 2 |
| Output Polarity | TRUE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| DLA Qualification | Not Qualified |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 6 |
| Terminal Pitch (mm) | 0.65 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | 3-STATE |
| Propagation Delay (ns) | 20.7 |
| Seated Height-Max (mm) | 1.1 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 1.08 |
| Supply Voltage-Nom (V) | 3.3 |
| Supply Current-Max (mA) | 0.004 |
| Package Equivalence Code | TSSOP6,.08 |
| Moisture Sensitivity Level | 1 |
| Output Low Current-Max (mA) | 32 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Propagation Delay-Max@Nom-Sup (ns) | 20.7 |
| Screening Level / Reference Standard | AEC-Q100 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated SN74LVC1T45QDCKRQ1 in the documentation section.
Automotive Single-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation 6-SC70 -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, SN74LVC1T45QDCKRQ1 optimizes energy distribution in electronic devices. Its Automotive Single-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation 6-SC70 -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, SN74LVC1T45QDCKRQ1 ensures stable output voltage even when the load changes. Its Automotive Single-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation 6-SC70 -40 to 125 makes it a reliable element in multi-level power systems.
