LM26420YSQX/NOPB
Availability
Design risk
Price trend
Lead time

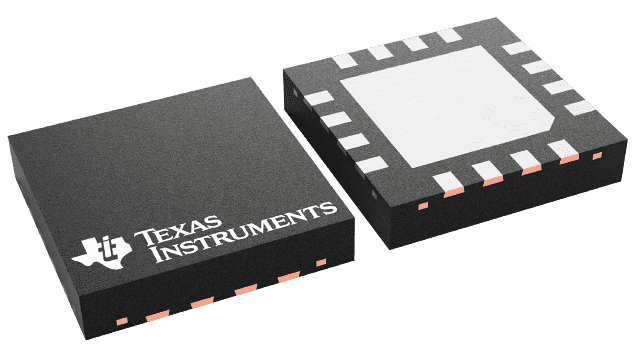

Dual 2 A, high-efficiency synchronous DC/DC converter 16-WQFN -40 to 125
| Technology | BICMOS |
| Width (mm) | 4 |
| Length (mm) | 4 |
| Control Mode | CURRENT-MODE |
| JESD-30 Code | S-XQCC-N16 |
| Package Code | HVQCCN |
| Package Shape | SQUARE |
| Package Style (Meter) | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e3 |
| Terminal Finish | Matte Tin (Sn) |
| Control Technique | PULSE WIDTH MODULATION |
| DLA Qualification | Not Qualified |
| Number of Outputs | 2 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | QUAD |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 4.5V |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Terminal Pitch (mm) | 0.65 |
| Input Voltage-Max (V) | 5.5 |
| Input Voltage-Min (V) | 3 |
| Input Voltage-Nom (V) | 5 |
| Package Body Material | UNSPECIFIED |
| Analog IC - Other Type | DUAL SWITCHING CONTROLLER |
| Output Current-Max (A) | 2 |
| Output Voltage-Max (V) | 4.5 |
| Output Voltage-Min (V) | 0.8 |
| Seated Height-Max (mm) | 0.8 |
| Switcher Configuration | BUCK |
| Package Equivalence Code | LCC16,.16SQ,25 |
| Moisture Sensitivity Level | 3 |
| Peak Reflow Temperature (Cel) | 260 |
| Switching Frequency-Max (kHz) | 2200 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
