LM2674MX-5.0/NOPB
Availability
Design risk
Price trend
Lead time

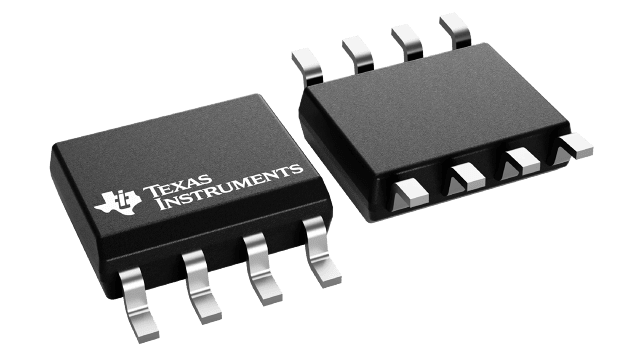

SIMPLE SWITCHER® 40V, 500mA Low Component Count Step-Down Regulator 8-SOIC -40 to 125
| Technology | DMOS |
| Width (mm) | 3.9 |
| Length (mm) | 4.9 |
| Control Mode | VOLTAGE-MODE |
| JESD-30 Code | R-PDSO-G8 |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Terminal Finish | Matte Tin (Sn) |
| Control Technique | PULSE WIDTH MODULATION |
| DLA Qualification | Not Qualified |
| Number of Outputs | 1 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Terminal Pitch (mm) | 1.27 |
| Input Voltage-Max (V) | 40 |
| Input Voltage-Min (V) | 6.5 |
| Input Voltage-Nom (V) | 12 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Output Current-Max (A) | 0.5 |
| Output Voltage-Max (V) | 37 |
| Output Voltage-Min (V) | 1.23 |
| Output Voltage-Nom (V) | 5 |
| Seated Height-Max (mm) | 1.75 |
| Switcher Configuration | BUCK |
| Package Equivalence Code | SOP8,.25 |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Switching Frequency-Max (kHz) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated LM2674MX-5.0/NOPB in the documentation section.
SIMPLE SWITCHER® 40V, 500mA Low Component Count Step-Down Regulator 8-SOIC -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, LM2674MX-5.0/NOPB optimizes energy distribution in electronic devices. Its SIMPLE SWITCHER® 40V, 500mA Low Component Count Step-Down Regulator 8-SOIC -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, LM2674MX-5.0/NOPB ensures stable output voltage even when the load changes. Its SIMPLE SWITCHER® 40V, 500mA Low Component Count Step-Down Regulator 8-SOIC -40 to 125 makes it a reliable element in multi-level power systems.
