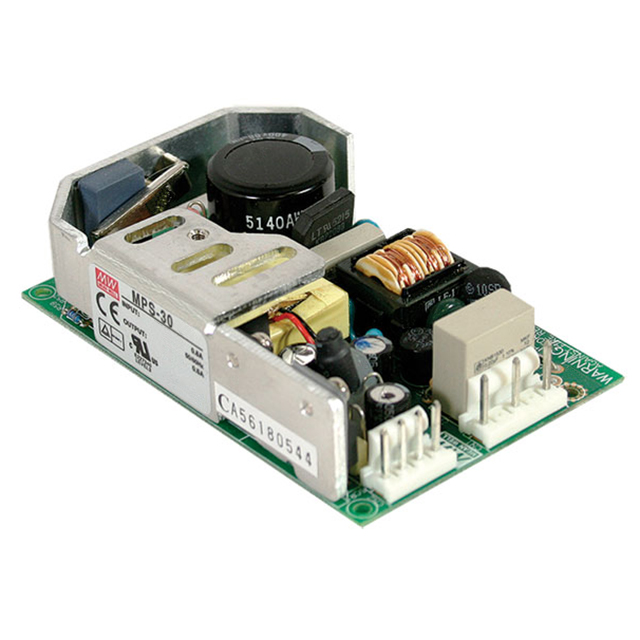

MPS-30-12
Availability
Design risk
Price trend
Lead time
| Approvals | IEC, EN, ES, ANSI, AAMI |
| Technology | HYBRID |
| Width (mm) | 65.8000 |
| Length (mm) | 101.6000 |
| Protections | OVER LOAD, OVER VOLTAGE, OVER TEMPERATURE |
| JESD-30 Code | R-XXMA-X |
| Package Code | XMA |
| Package Shape | RECTANGULAR |
| Package Style | MICROELECTRONIC ASSEMBLY |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Number of Outputs | 1 |
| Terminal Position | UNSPECIFIED |
| Additional Feature | ALSO OPERATES IN 120-370 VDC |
| Number of Functions | 1 |
| Input Voltage-Max (V) | 264.0000000000000000 |
| Input Voltage-Min (V) | 88.0000000000000000 |
| Input Voltage-Nom (V) | 115 |
| Package Body Material | UNSPECIFIED |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE |
| Output Current-Max (A) | 2.5000000000000000 |
| Output Voltage-Max (V) | 12.3600000000000000 |
| Output Voltage-Min (V) | 11.6400000000000000 |
| Output Voltage-Nom (V) | 12.0000000000000000 |
| Trim/Adjustable Output | NO |
| Warm-Up Time (Seconds) | 0.530000000000000 |
| Line Regulation-Max (%) | 1.000000 |
| Load Regulation-Max (%) | 1.000000 |
| Total Power Output-Max (W) | 30.0000000000000000 |
| Efficiency (Main Output) (%) | 75.000000 |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Operating Temperature-Max (Cel) | 60 |
| Operating Temperature-Min (Cel) | -10 |
| Ripple Voltage (Main Out) (Vrms) | 0.042420000000000 |
| Screening Level / Reference Standard | IEC/EN/ES 60601-1, Two MOPP |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for MEAN WELL Enterprises Co., Ltd. MPS-30-12 in the documentation section.
AC/DC CONVERTER 12V 30W
Despite belonging to the category Miscellaneous, its AC/DC CONVERTER 12V 30W opens up broad possibilities for application in niche and innovative projects, from IoT devices to industrial automation.
Despite belonging to the category Miscellaneous, its AC/DC CONVERTER 12V 30W ensures flexibility in integration. This makes it suitable for a wide range of projects where a non-standard but reliable component is required.
