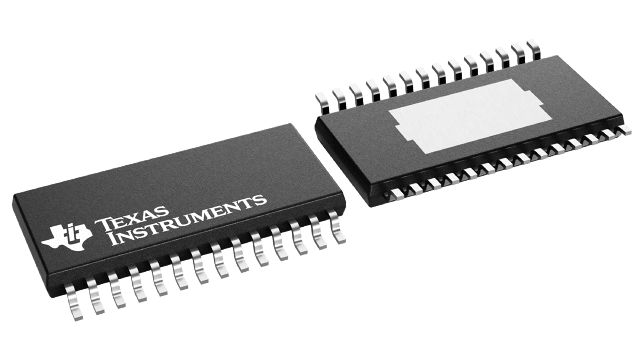

DRV8844PWPR
Availability
Design risk
Price trend
Lead time
60-V, 2.5-A dual H-bridge motor driver with bipolar (+/-30v) supply & independent 1/2-bridge control 28-HTSSOP -40 to 125
| Width (mm) | 4.4 |
| Length (mm) | 9.7 |
| JESD-30 Code | R-PDSO-G28 |
| Package Code | HTSSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Output Polarity | TRUE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Interface IC Type | HALF BRIDGE BASED PERIPHERAL DRIVER |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Turn-on Time (us) | 0.4750000000000000 |
| Turn-off Time (us) | 0.5000000000000000 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Terminal Pitch (mm) | 0.65 |
| Built-in Protections | OVER CURRENT; THERMAL; UNDER VOLTAGE |
| Driver Number of Bits | 4 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | TOTEM-POLE |
| Output Current-Max (A) | 2.5 |
| Seated Height-Max (mm) | 1.2 |
| Supply Voltage-Max (V) | 60 |
| Supply Voltage-Min (V) | 8 |
| Supply Voltage-Nom (V) | 24 |
| Supply Current-Max (mA) | 5 |
| Supply Voltage1-Max (V) | 60.0000 |
| Supply Voltage1-Min (V) | 8.0000 |
| Moisture Sensitivity Level | 3 |
| Output Current Flow Direction | SOURCE AND SINK |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
