Semiconductors

Logic ICs

Lead Time     15 weeks

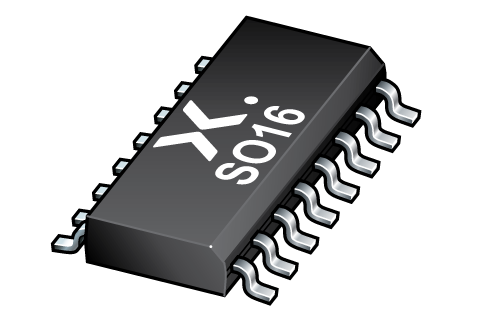

8-bit serial-in, serial or parallel-out shift register with output latches; 3-state

Technical Data

Manufacturer NEXPERIA
MPN 74HC595D,118
Family HC/UH
Direction RIGHT
Technology CMOS
Width (mm) 3.9000
Length (mm) 9.9000
JESD-30 Code R-PDSO-G16
Package Code SOP
Trigger Type POSITIVE EDGE
Logic IC Type SERIAL IN PARALLEL OUT
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Number of Bits 8.0000
Packing Method TR, 13 INCH
fmax-Min (MHz) 24.0000
Output Polarity TRUE
Terminal Finish NICKEL PALLADIUM GOLD
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Additional Feature SERIAL STANDARD OUTPUT FOR CASCADING
Number of Functions 1.0000
Number of Terminals 16.0000
Terminal Pitch (mm) 1.2700
Package Body Material PLASTIC/EPOXY
Output Characteristics 3-STATE
Propagation Delay (ns) 240.0000
Seated Height-Max (mm) 1.7500
Supply Voltage-Max (V) 6.0000
Supply Voltage-Min (V) 2.0000
Supply Voltage-Nom (V) 5.0000
Supply Current-Max (mA) 0.1600
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Number of Elements 1.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Logic ICs, 74HC595D.118 optimizes energy distribution in electronic devices. Its 8-bit serial-in, serial or parallel-out shift register with output latches; 3-state allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Logic ICs, 74HC595D.118 ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for 74HC595D.118 in the documentation section.

8-bit serial-in, serial or parallel-out shift register with output latches; 3-state
