Interconnects

Lead Time 15 weeks

Data Sheet

2002411215

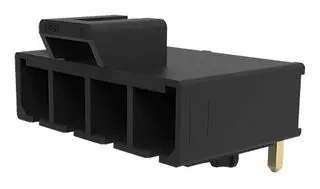

Headers & Wire Housings mega-fit hdr 01x05p blk ra sn

Submit Request

Technical Data

Manufacturer molex llc

MPN 2002411215.0000

Option GENERAL PURPOSE

Empty Shell NO

Contact Style SQ PIN-SKT

Mounting Type BOARD

Connector Type RECTANGULAR POWER CONNECTOR

Contact Gender MALE

Filter Feature NO

J-STD-609 Code e3

Mixed Contacts NO

Contact Material NOT SPECIFIED

Termination Type SOLDER

Body Depth (inch) 1.0000

Additional Feature RATED CURRENT(POWER): 26A, POLARIZED

Body Length (inch) 1.1500

Insulator Material LIQUID CRYSTAL POLYMER

Mating Information 200456.0000

Number of Contacts 5.0000

Body Breadth (inch) 0.5000

Contact Finish - Mating NOT SPECIFIED

Contact Finish - Termination Matte Tin (Sn)

Operating Temperature-Max (Cel) 105.0000

Operating Temperature-Min (Cel) -40.0000

Screening Level / Reference Standard UL

Availability In stock
