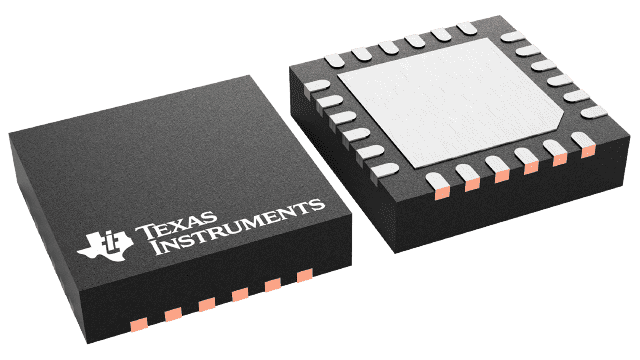

TLV320DAC3203IRGER
Availability
Design risk
Price trend
Lead time
Stereo audio DAC with stereo 125-mW headphone driver & audio processing 24-VQFN -40 to 85
| Width (mm) | 4 |
| Length (mm) | 4 |
| JESD-30 Code | S-PQCC-N24 |
| Package Code | HVQCCN |
| Package Shape | SQUARE |
| Package Style (Meter) | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Number of Bands | 1 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Consumer IC Type | VOLUME CONTROL CIRCUIT |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Number of Channels | 2 |
| Number of Functions | 1 |
| Number of Terminals | 24 |
| Terminal Pitch (mm) | 0.5 |
| Output Power-Nom (W) | 0.0470000000000000 |
| Noise Figure-Nom (dB) | 94.0000000000000000 |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 1 |
| Supply Voltage-Max (V) | 1.9500000000000000 |
| Supply Voltage-Min (V) | 1.5000000000000000 |
| Channel Separation (dB) | 92.0000000000000000 |
| Package Equivalence Code | LCC24,.16SQ,20 |
| Moisture Sensitivity Level | 2 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated TLV320DAC3203IRGER in the documentation section.
Stereo audio DAC with stereo 125-mW headphone driver & audio processing 24-VQFN -40 to 85
As part of the category Semiconductors and subcategory Semiconductors, TLV320DAC3203IRGER optimizes energy distribution in electronic devices. Its Stereo audio DAC with stereo 125-mW headphone driver & audio processing 24-VQFN -40 to 85 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, TLV320DAC3203IRGER ensures stable output voltage even when the load changes. Its Stereo audio DAC with stereo 125-mW headphone driver & audio processing 24-VQFN -40 to 85 makes it a reliable element in multi-level power systems.
