Interconnects

Headers and Edge Type Connectors

Lead Time     25 weeks

Datasheet

    Download 70543-0009 datasheet 70543-0009

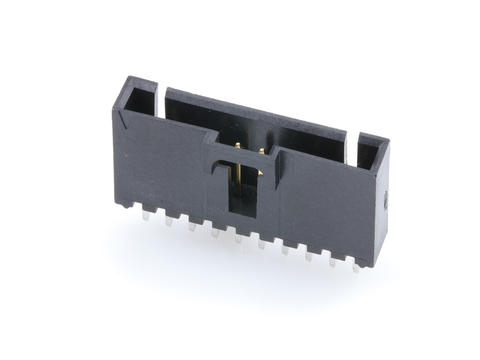

Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole SL Tube

Technical Data

Manufacturer molex llc
MPN 70543-0009
Option GENERAL PURPOSE
Contact Style SQ PIN-SKT
Mounting Type BOARD
Connector Type BOARD CONNECTOR
Contact Gender MALE
Filter Feature NO
J-STD-609 Code e3
Mixed Contacts NO
Mounting Style STRAIGHT
Contact Pattern RECTANGULAR
DIN Conformance NO
IEC Conformance NO
Insulator Color BLACK
MIL Conformance NO
Contact Material NOT SPECIFIED
Polarization Key POLARIZED HOUSING
Termination Type SOLDER
Body Depth (inch) 0.4650
Mounting Option 1 LATCH
Mounting Option 2 LOCKING
Additional Feature LATCHED
Body Length (inch) 1.1000
Insulator Material GLASS FILLED POLYESTER
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 10.0000
Number of PCB Rows 1.0000
Body Breadth (inch) 0.2600
Durability (Cycles) 50.0000
PCB Contact Pattern RECTANGULAR
Terminal Pitch (mm) 2.5400
Number of Connectors ONE
UL Flammability Code 94V-0
Number of Rows Loaded 1.0000
Terminal Length (inch) 0.1300
Contact Finish - Mating NOT SPECIFIED
Plating Thickness (inch) 15u
Contact Resistance (mohm) 30.0000
Rated Current (Signal) (A) 3.0000
Insulation Resistance (ohm) 10000000000.0000
Mating Contact Pitch (inch) 0.1000
Contact Finish - Termination Tin (Sn)
Operating Temperature-Max (Cel) 105.0000
Operating Temperature-Min (Cel) -40.0000
Dielectric Withstanding Voltage (V) 600VAC
Screening Level / Reference Standard UL, CSA
Availability In stock
