XC95144XL-10TQG144I
Availability
Design risk
Price trend
Lead time

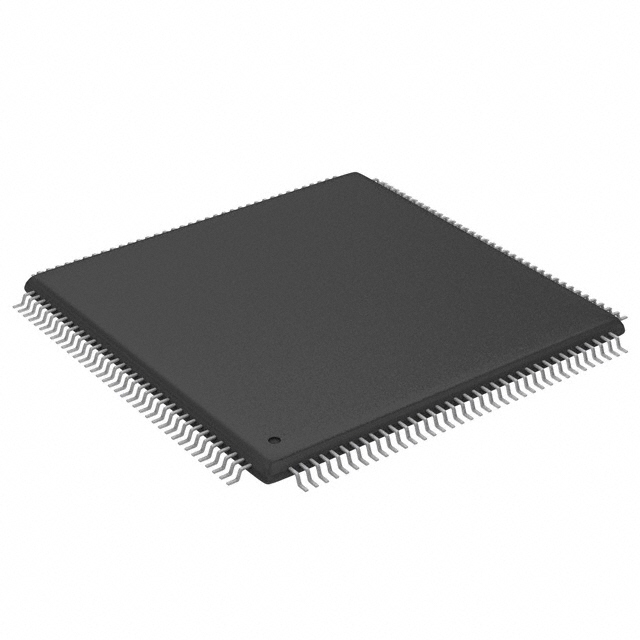

IC CPLD 144MC 10NS 144TQFP
| JTAG BST | YES |
| Technology | CMOS |
| Width (mm) | 20 |
| Length (mm) | 20 |
| JESD-30 Code | S-PQFP-G144 |
| Organization | 0 DEDICATED INPUTS, 117 I/O |
| Package Code | LFQFP |
| Package Shape | SQUARE |
| Package Style (Meter) | FLATPACK, LOW PROFILE, FINE PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Output Function | MACROCELL |
| Terminal Finish | MATTE TIN |
| Number of Inputs | 117 |
| DLA Qualification | Not Qualified |
| Number of Outputs | 117 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Additional Feature | YES |
| Number of I/O Lines | 117 |
| Number of Terminals | 144 |
| Terminal Pitch (mm) | 0.5 |
| Number of Macro Cells | 144 |
| Package Body Material | PLASTIC/EPOXY |
| In-System Programmable | YES |
| Propagation Delay (ns) | 10 |
| Seated Height-Max (mm) | 1.6 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3.3 |
| Programmable Logic Type | FLASH PLD |
| Package Equivalence Code | QFP144,.87SQ,20 |
| Clock Frequency-Max (MHz) | 138.88 |
| Moisture Sensitivity Level | 3 |
| Number of Dedicated Inputs | 0 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Advanced Micro Devices, Inc. (AMD) XC95144XL-10TQG144I in the documentation section.
IC CPLD 144MC 10NS 144TQFP
As part of the category Semiconductors and subcategory Semiconductors, XC95144XL-10TQG144I optimizes energy distribution in electronic devices. Its IC CPLD 144MC 10NS 144TQFP allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, XC95144XL-10TQG144I ensures stable output voltage even when the load changes. Its IC CPLD 144MC 10NS 144TQFP makes it a reliable element in multi-level power systems.
