9FGV1006C001LTGI8
Availability
Design risk
Price trend
Lead time

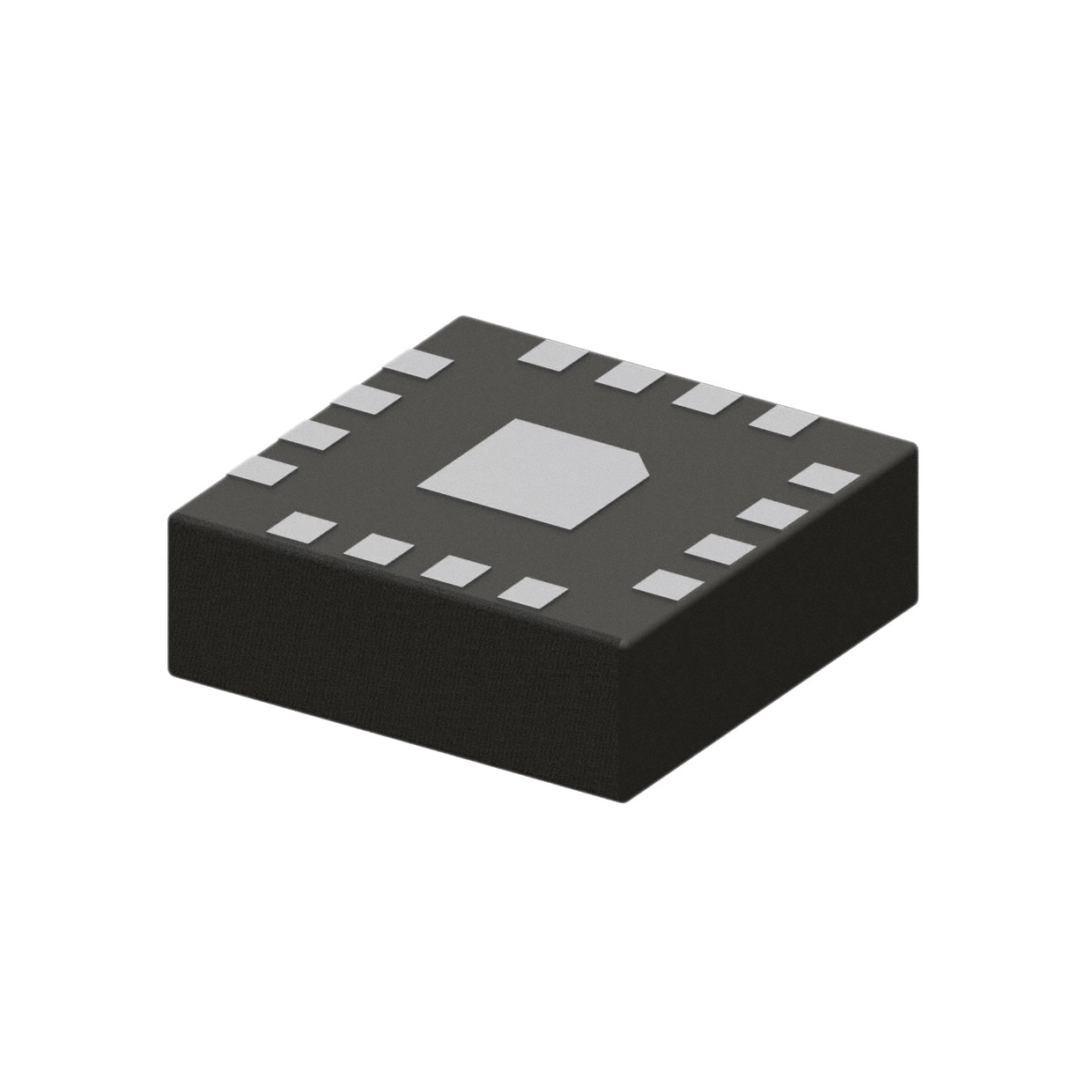

Programmable PhiClock Generator LGA 3.00x3.00x1.10 mm 0.50mm Pitch
| Technology | CMOS |
| Width (mm) | 3 |
| Length (mm) | 3 |
| JESD-30 Code | S-XBGA-N16 |
| Package Code | HTFLGA |
| Package Shape | SQUARE |
| Package Style (Meter) | GRID ARRAY, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Terminal Finish | GOLD |
| Terminal Position | BOTTOM |
| Number of Terminals | 16 |
| Terminal Pitch (mm) | 0.5 |
| Package Body Material | UNSPECIFIED |
| Seated Height-Max (mm) | 1.2 |
| Supply Voltage-Max (V) | 3.465 |
| Supply Voltage-Min (V) | 3.135 |
| Supply Voltage-Nom (V) | 3.3 |
| Supply Current-Max (mA) | 49 |
| Package Equivalence Code | LGA16,4X4,20 |
| Moisture Sensitivity Level | 3 |
| uPs/uCs/Peripheral ICs Type | CLOCK GENERATOR, PCIe |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Output Clock Frequency-Max (MHz) | 325 |
| Primary Clock/Crystal Frequency-Nom (MHz) | 240 |
| Width | 3 |
| Length | 3 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Renesas Electronics Corp. 9FGV1006C001LTGI8 in the documentation section.
Programmable PhiClock Generator LGA 3.00x3.00x1.10 mm 0.50mm Pitch
As part of the category Semiconductors and subcategory Semiconductors, 9FGV1006C001LTGI8 optimizes energy distribution in electronic devices. Its Programmable PhiClock Generator LGA 3.00x3.00x1.10 mm 0.50mm Pitch allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, 9FGV1006C001LTGI8 ensures stable output voltage even when the load changes. Its Programmable PhiClock Generator LGA 3.00x3.00x1.10 mm 0.50mm Pitch makes it a reliable element in multi-level power systems.
