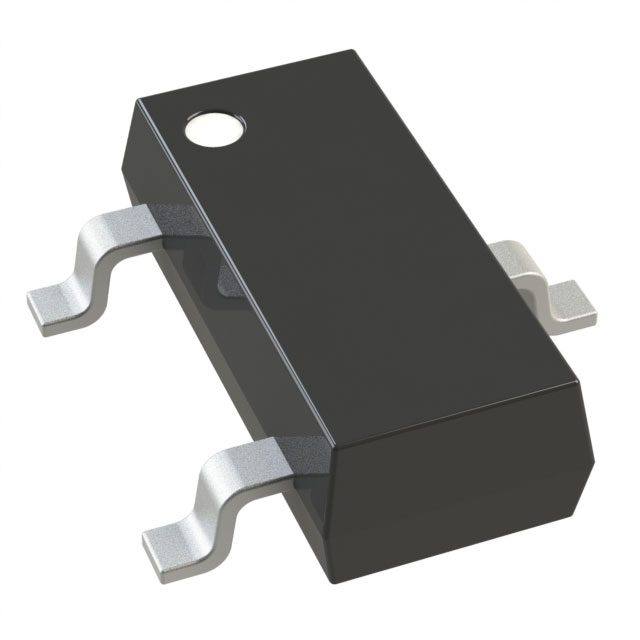

LM4040D41QFTA
Availability
Design risk
Price trend
Lead time
Automotive AEC-Q100Compliant Precision Micropower Shunt Voltage References
| Width (mm) | 1.3 |
| Length (mm) | 2.9 |
| JESD-30 Code | R-PDSO-G3 |
| Package Code | TSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Terminal Finish | MATTE TIN |
| Number of Outputs | 1 |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 3 |
| Terminal Pitch (mm) | 0.915 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE |
| Output Current-Max (A) | 0.015 |
| Output Voltage-Max (V) | 4.121 |
| Output Voltage-Min (V) | 4.055 |
| Output Voltage-Nom (V) | 4.096 |
| Seated Height-Max (mm) | 1.1 |
| Trim/Adjustable Output (V) | NO |
| Package Equivalence Code | TO-236 |
| Voltage Tolerance-Max (%) | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Temp Coef of Voltage-Max (ppm/Cel) | 150 |
| Screening Level / Reference Standard | AEC-Q100 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Diodes Incorporated LM4040D41QFTA in the documentation section.
Automotive AEC-Q100Compliant Precision Micropower Shunt Voltage References
As part of the category Semiconductors and subcategory Semiconductors, LM4040D41QFTA optimizes energy distribution in electronic devices. Its Automotive AEC-Q100Compliant Precision Micropower Shunt Voltage References allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, LM4040D41QFTA ensures stable output voltage even when the load changes. Its Automotive AEC-Q100Compliant Precision Micropower Shunt Voltage References makes it a reliable element in multi-level power systems.
