Lead Time     18 weeks

Datasheet

    Download DRV8323SRTAT datasheet DRV8323SRTAT

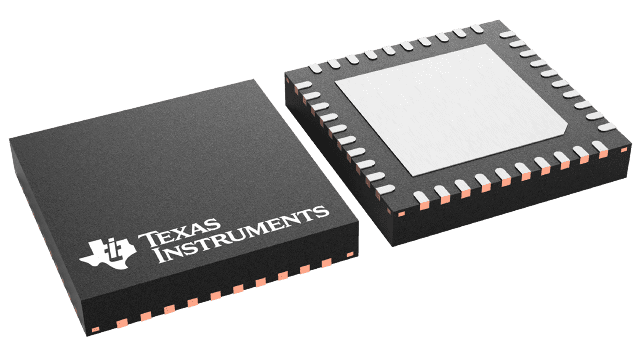

65-V max 3-phase smart gate driver with current shunt amplifiers 40-WQFN -40 to 125

Technical Data

Manufacturer texas instruments inc
MPN DRV8323SRTAT
Width (mm) 6.0000
Length (mm) 6.0000
JESD-30 Code S-PQCC-N40
Package Code HVQCCN
Package Shape SQUARE
Package Style ( Meter ) CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Surface Mount YES
Terminal Form NO LEAD
J-STD-609 Code e4
Output Polarity TRUE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
High Side Driver YES
Interface IC Type HALF BRIDGE BASED MOSFET DRIVER
Terminal Position QUAD
Number of Functions 1.0000
Number of Terminals 40.0000
Terminal Pitch (mm) 0.5000
Input Characteristics STANDARD
Package Body Material PLASTIC/EPOXY
Output Characteristics PUSH-PULL
Seated Height-Max (mm) 0.8000
Supply Voltage-Max (V) 60.0000
Supply Voltage-Min (V) 6.0000
Supply Voltage-Nom (V) 8.0000
Supply Current-Max (mA) 14.0000
Supply Voltage1-Max (V) 65.0000
Supply Voltage1-Min (V) 6.0000
Supply Voltage1-Nom (V) 8.0000
Package Equivalence Code LCC40,.24SQ,20
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Output Peak Current Limit-Nom (A) 1.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, DRV8323SRTAT optimizes energy distribution in electronic devices. Its 65-V max 3-phase smart gate driver with current shunt amplifiers 40-WQFN -40 to 125 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, DRV8323SRTAT ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for DRV8323SRTAT in the documentation section.

65-V max 3-phase smart gate driver with current shunt amplifiers 40-WQFN -40 to 125
