DS90UB954TRGZRQ1
Availability
Design risk
Price trend
Lead time

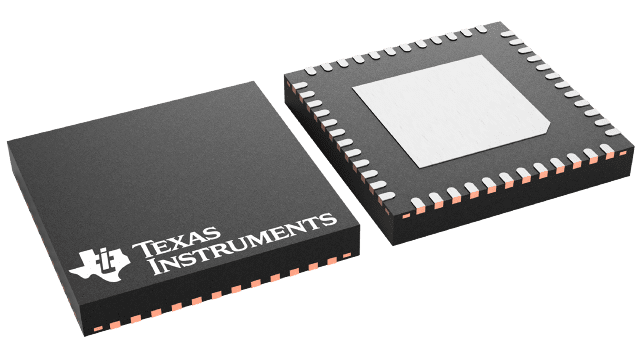

Dual 2 MP FPD-Link III deserializer with CSI-2 outputs for 2MP/60fps cameras & radar 48-VQFN -40 to 105
| Width (mm) | 7 |
| Length (mm) | 7 |
| JESD-30 Code | S-PQCC-N48 |
| Package Code | HVQCCN |
| Package Shape | SQUARE |
| Package Style (Meter) | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Interface IC Type | LINE RECEIVER |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Interface Standard | ISO 10605 |
| Number of Functions | 2 |
| Number of Terminals | 48 |
| Terminal Pitch (mm) | 0.5 |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 1 |
| Supply Voltage-Max (V) | 1.89 |
| Supply Voltage-Min (V) | 1.71 |
| Supply Voltage-Nom (V) | 1.8 |
| Receiver Number of Bits | 2 |
| Supply Voltage1-Max (V) | 1.89 |
| Supply Voltage1-Min (V) | 1.71 |
| Supply Voltage1-Nom (V) | 1.8 |
| Moisture Sensitivity Level | 3 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 105 |
| Operating Temperature-Min (Cel) | -40 |
| Screening Level / Reference Standard | AEC-Q100 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated DS90UB954TRGZRQ1 in the documentation section.
Dual 2 MP FPD-Link III deserializer with CSI-2 outputs for 2MP/60fps cameras & radar 48-VQFN -40 to 105
As part of the category Semiconductors and subcategory Semiconductors, DS90UB954TRGZRQ1 optimizes energy distribution in electronic devices. Its Dual 2 MP FPD-Link III deserializer with CSI-2 outputs for 2MP/60fps cameras & radar 48-VQFN -40 to 105 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, DS90UB954TRGZRQ1 ensures stable output voltage even when the load changes. Its Dual 2 MP FPD-Link III deserializer with CSI-2 outputs for 2MP/60fps cameras & radar 48-VQFN -40 to 105 makes it a reliable element in multi-level power systems.
