Semiconductors

Transient Suppressors

Lead Time     17 weeks

Datasheet

    Download SZ1SMB30CAT3G datasheet SZ1SMB30CAT3G

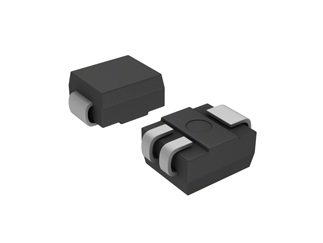

Diode TVS Single Bi-Dir 30V 600W 2-Pin SMB T/R Automotive AEC-Q101

Technical Data

Manufacturer littelfuse inc
MPN SZ1SMB30CAT3G
Polarity BIDIRECTIONAL
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Technology ZENER
JESD-30 Code R-PDSO-C2
Configuration SINGLE
JEDEC-95 Code DO-214AA
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form C BEND
J-STD-609 Code e3
Terminal Finish Matte Tin (Sn)
Terminal Position DUAL
Number of Elements 1.0000
Number of Terminals 2.0000
Package Body Material PLASTIC/EPOXY
Diode Element Material SILICON
Clamping Voltage-Max (V) 48.4000
Reverse Current-Max (uA) 5.0000
Reverse Test Voltage (V) 30.0000
Breakdown Voltage-Max (V) 36.8000
Breakdown Voltage-Min (V) 33.3000
Breakdown Voltage-Nom (V) 35.0600
Power Dissipation-Max (W) 1.5000
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Rep Pk Reverse Voltage-Max (V) 30.0000
Operating Temperature-Max (Cel) 175.0000
Operating Temperature-Min (Cel) -65.0000
Non-rep Peak Rev Power Dis-Max (W) 600.0000
Screening Level / Reference Standard AEC-Q101; IEC-61000-4-2; UL RECOGNIZED
Time@Peak Reflow Temperature-Max (s) 40.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Transient Suppressors, SZ1SMB30CAT3G optimizes energy distribution in electronic devices. Its Diode TVS Single Bi-Dir 30V 600W 2-Pin SMB T/R Automotive AEC-Q101 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Transient Suppressors, SZ1SMB30CAT3G ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for SZ1SMB30CAT3G in the documentation section.

Diode TVS Single Bi-Dir 30V 600W 2-Pin SMB T/R Automotive AEC-Q101
