    Download MAX3072EESA+ datasheet MAX3072EESA+

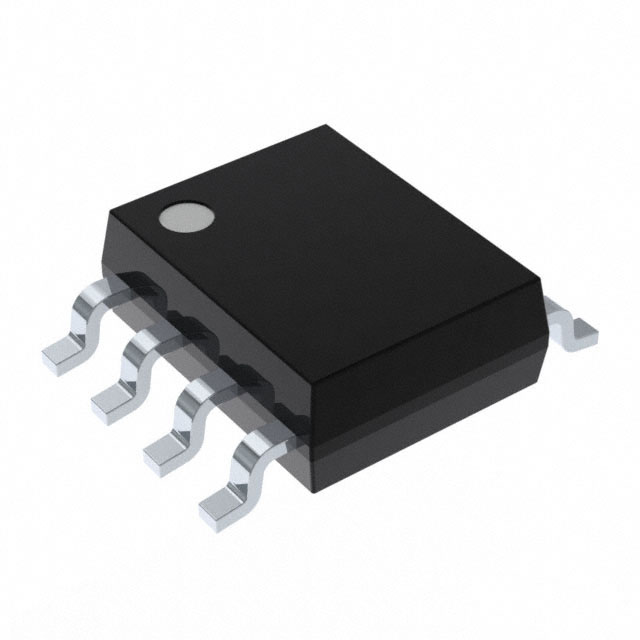

+3.3V, ±15kV ESD-Protected, Fail-Safe, Hot-Swap, RS-485/RS-422 Transceivers

Technical Data

Manufacturer analog devices inc
MPN MAX3072EESA+
Technology BICMOS
Width (mm) 3.9000
Length (mm) 4.9000
JESD-30 Code R-PDSO-G8
Package Code SOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e3
Output Polarity COMPLEMENTARY
Terminal Finish Matte Tin (Sn) - annealed
DLA Qualification Not Qualified
Interface IC Type LINE TRANSCEIVER
Out Swing-Min (V) 1.5000
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Interface Standard EIA-422; EIA-485; TIA-485
Differential Output YES
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 1.2700
Driver Number of Bits 1.0000
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Package Body Material PLASTIC/EPOXY
Output Characteristics 3-STATE
Receive Delay-Max (ns) 200.0000
Seated Height-Max (mm) 1.7500
Supply Voltage-Max (V) 3.6300
Supply Voltage-Min (V) 2.9700
Supply Voltage-Nom (V) 3.3000
Receiver Number of Bits 1.0000
Supply Current-Max (mA) 1.5000
Supply Voltage1-Max (V) 3.6300
Supply Voltage1-Min (V) 2.9700
Supply Voltage1-Nom (V) 3.3000
Transmit Delay-Max (ns) 1500.0000
Package Equivalence Code SOP8,.25
Moisture Sensitivity Level 1.0000
Output Low Current-Max (mA) 1.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
High Level Input Current-Max (A) 0.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
