Passives

Fixed Resistors

Lead Time     18 weeks
Data Sheet     Download WR06X363JTL datasheet WR06X363JTL

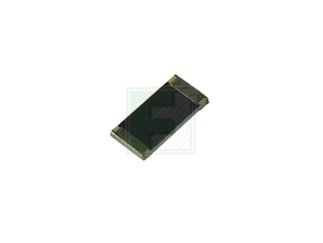

WR Series 0603 36.3 kOhm ±5 % 0.10 W ±200 ppm/°C Thick Film Chip Resistor

Technical Data

Manufacturer walsin technology corp
MPN WR06X363JTL
Size Code 603.0000
Technology METAL GLAZE/THICK FILM
Construction Rectangular
Package Style ( Meter ) SMT
Resistor Type FIXED RESISTOR
Tolerance (%) 5.0000
J-STD-609 Code e3
Packing Method TR, PAPER, 7 INCH
Terminal Shape WRAPAROUND
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Mounting Feature SURFACE MOUNT
Resistance (ohm) 36000.0000
Additional Feature FLAME PROOF, LASER TRIMMABLE
Package Width (mm) 0.8000
Number of Terminals 2.0000
Package Height (mm) 0.4500
Package Length (mm) 1.6000
Working Voltage (V) 75.0000
Rated Temperature (Cel) 70.0000
Operating Temperature-Max (Cel) 155.0000
Operating Temperature-Min (Cel) -55.0000
Rated Power Dissipation (P) (W) 0.1000
Temperature Coefficient (ppm/Cel) 100.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As a typical representative of the subcategory Fixed Resistors, WR06X363 JTL is used to control the level of current and voltage in electrical circuits. Its ensures stable resistance, which is critical for precise measurements and component protection.

WR06X363 JTL from the category Passives and subcategory Fixed Resistors by mfrName WALSIN TECHNOLOGY CORP provides precise current limitation in the scheme. Thanks to its WR Series 0603 36.3 kOhm ±5 % 0.10 W ±200 ppm/°C Thick Film Chip Resistor, it contributes to stable operation of electronic devices, preventing overloads and voltage fluctuations.

You can download the user manual and technical specifications for WR06X363 JTL in the documentation section.

WR Series 0603 36.3 kOhm ±5 % 0.10 W ±200 ppm/°C Thick Film Chip Resistor
